Parts To Order
stargate project .com parts lists
Chevron DHD PowerPCB Stargate
Websites to purchase items
https://jlcpcb.comhttps://www.adafruit.com
https://www.aliexpress.us
https://www.amazon.com
https://www.digikey.com
https://www.ebay.com
https://www.lcsc.com
https://www.pimoronitop.shop
https://shop.pimoroni.com
https://www.sparkfun.com
https://www.tapplastics.com/
https://www.ttplasticland.com/
PCB Order
Making the DHD v2, thestargateproject.com
There are 4 potential Circuit Boards to purchase.
Chevron_v1.1.0 (7)
DHDv2 (1)
Power_v1.2 (1)

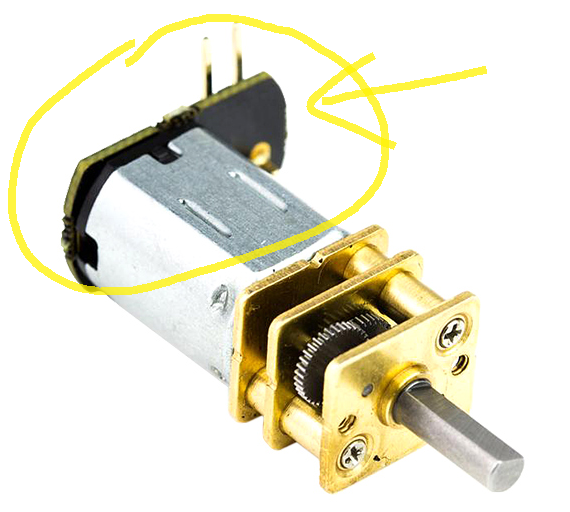

MotorShim_v1.0.0 (7). Motor-shim are the pieces that are soldered to the back of the chevron motors, which then have a pin connector to the you can attach the cables too. You can buy the 'chevron motors' with the shims already attached, which is likely why they aren't shared on the website.
For the DHD PCB board, order from: jlcpcb.com. It is around $0.92 cents a board.
Make sure to UPLOAD the file before selecting your options, they will reset.
Also be sure to apply coupons when checking out.

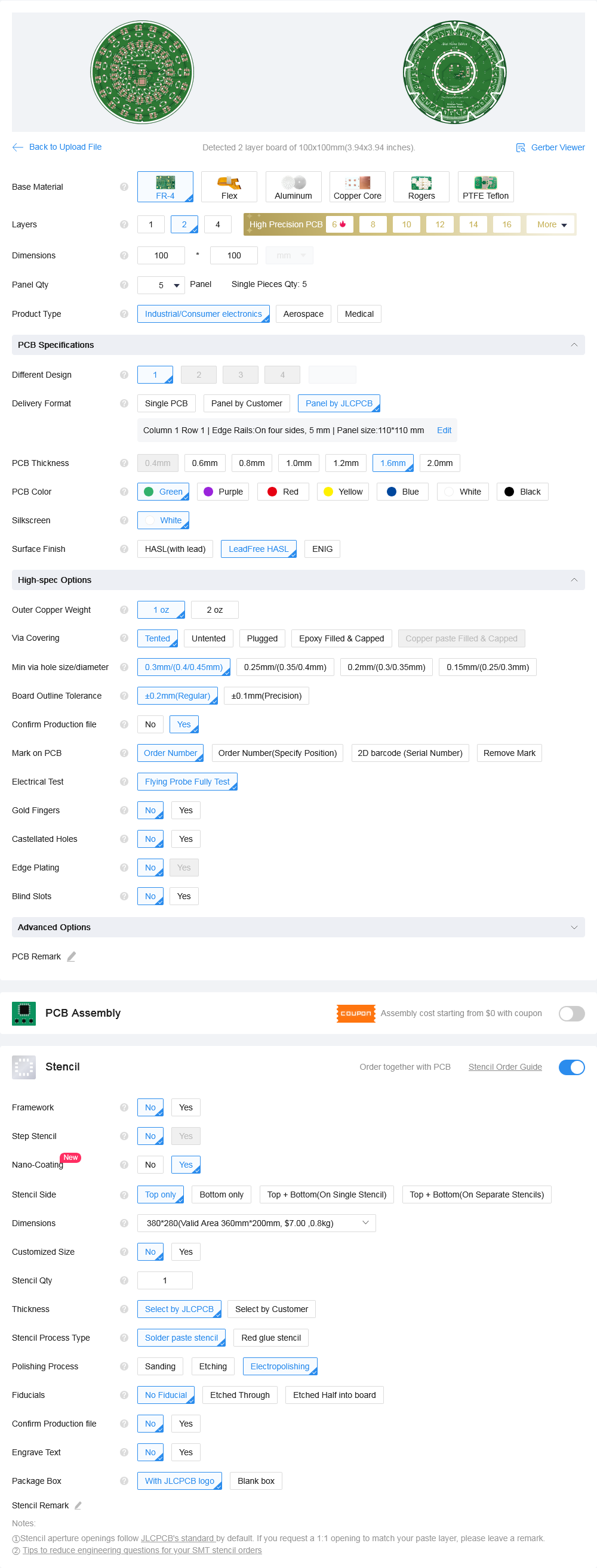

DHD_v2
Upload the DHD_v2_RC1_GERBERS.zip file to the orders page w/ the settings:-Material Base Material: FR-4 Layers: 2 Dimensions: 100x100mm PCC Qty: as many as you like Product Type: Industrial -PCB Specifications Different Design: 1 Delivery Format: Panel by JLCPCB Size: 100x100mm Panel Type: V-Cut Panel Format: 1x1 Edge Rails: On 4 sides Rail Width: 5 mm (not on sg website) PCB Thickness: 1.6mm PCB Color: Green Silkscreen: White (only option) Surface Finish: Lead-free HASL -High-spec Options Copper Weight: 1oz Via Covering: Tented (not on sg website) Min via hole size: 0.3mm (not on sg website) Board Outline Tolerance: 0.2mm (not on sg website) Confirm Production file: Yes Mark On PCB: Order Number (not on sg website) Electrical Test: Flying Probe (only option) Gold Fingers: No Castellated Holes: No Edge Plating: No (only for Edge Plating) Blind Slots : No -Stencil Framework: No Step Stencil: No Nano-Coating: Yes (you can choose no) Stencil Side: Top Only Dimensions: 380x280mm Customized size: No Stencil qty: 1 Thickness: Select By JLCPCB (not on sg website) Stencil Process Type: Solder Paste stencil (not on sg website) Polishing Process: Electropolishing Fiducials: No Fiducial Custom Production File: No (not on sg website) Engrave Text: No (not on sg website) Package Box: With JLCPCB logo (not on sg website)

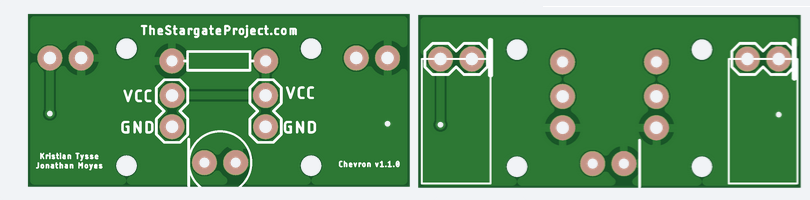

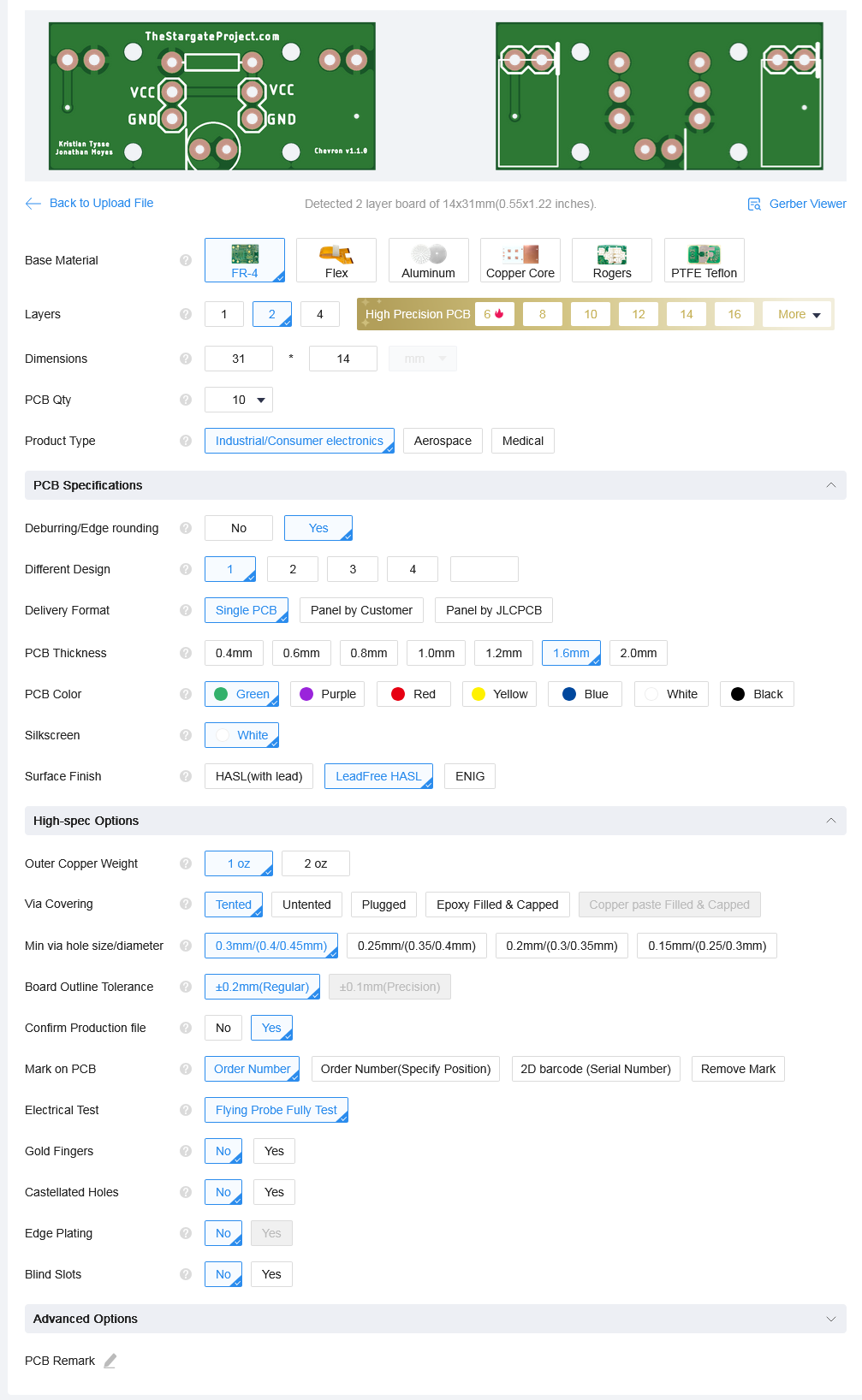

Chevron_v1.1.0
Upload Chevron_v1.1.0_gerbers.zip-Material Base Material: FR-4 Layers: 2 Dimensions: 31x14mm PCC Qty: 10 (need at least 7) Product Type: Industrial -PCB Specifications Deburring: Yes Different Design: 1 Delivery Format: Single PCB (Panel by JLCPCB least 70x70) PCB Thickness: 1.6mm PCB Color: Green Silkscreen: White (only option) Surface Finish: Lead-free HASL -High-spec Options Copper Weight: 1oz Via Covering: Tented (not on sg website) Min via hole size: 0.3mm (not on sg website) Board Outline Tolerance: 0.2mm (not on sg website) Confirm Production file: Yes Mark On PCB: Order Number (not on sg website) Electrical Test: Flying Probe (only option) Gold Fingers: No Castellated Holes: No Edge Plating: No (only for Edge Plating) Blind Slots: No

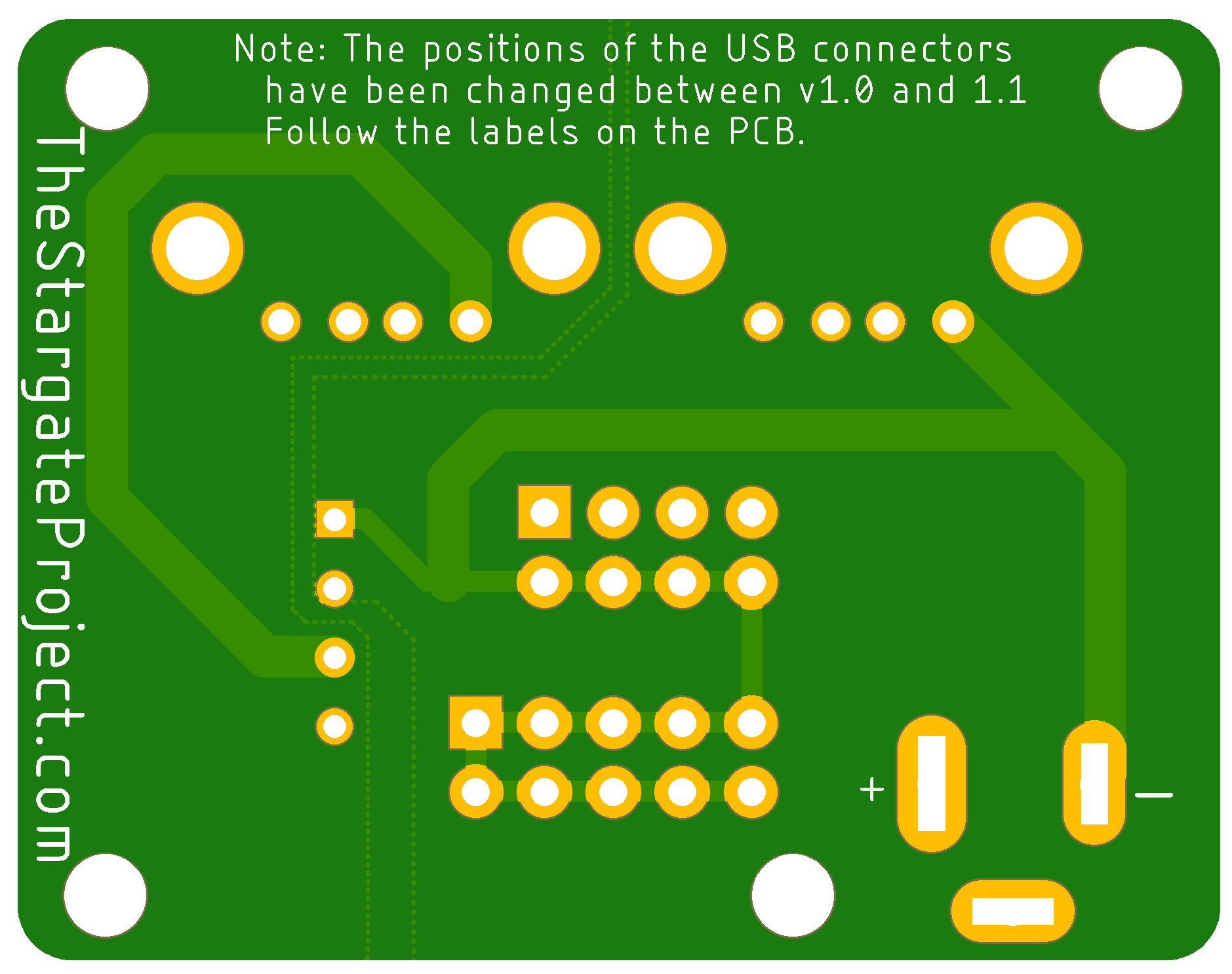

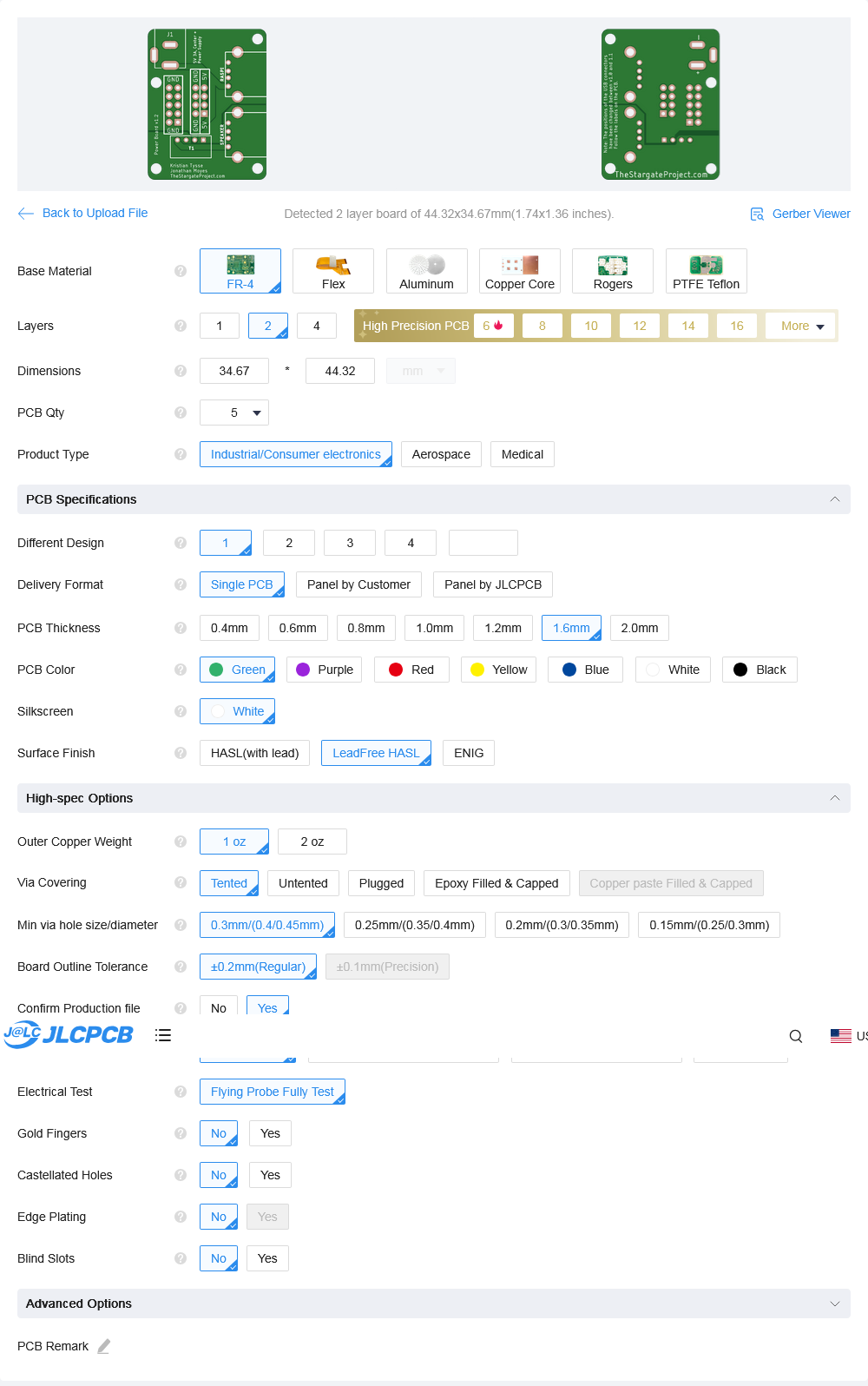

Power_v1.2
Upload Power_v1.2_gerbers.zip-Material Base Material: FR-4 Layers: 2 Dimensions: 34.67x44.32mm PCC Qty: 1 Product Type: Industrial -PCB Specifications Different Design: 1 Delivery Format: Single PCB (Panel by JLCPCB least 70x70) PCB Thickness: 1.6mm PCB Color: Green Silkscreen: White (only option) Surface Finish: Lead-free HASL -High-spec Options Copper Weight: 1oz Via Covering: Tented (not on sg website) Min via hole size: 0.3mm (not on sg website) Board Outline Tolerance: 0.2mm (not on sg website) Confirm Production file: Yes Mark On PCB: Order Number (not on sg website) Electrical Test: Flying Probe (only option) Gold Fingers: No Castellated Holes: No Edge Plating: No (only for Edge Plating) Blind Slots: No

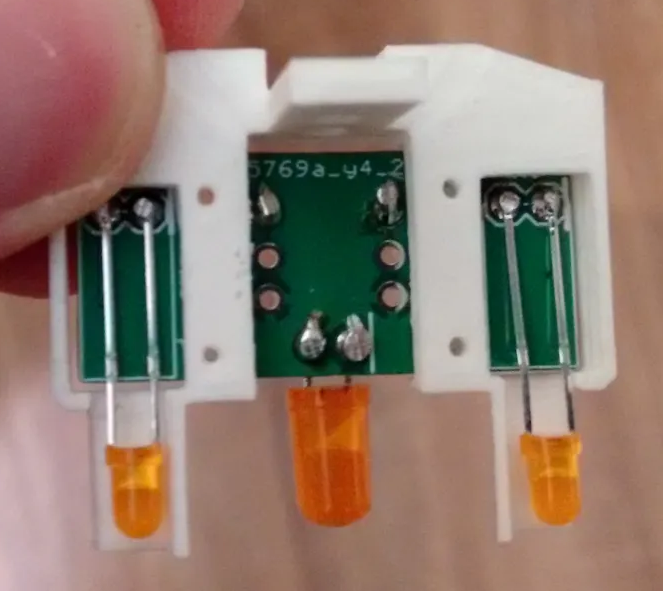

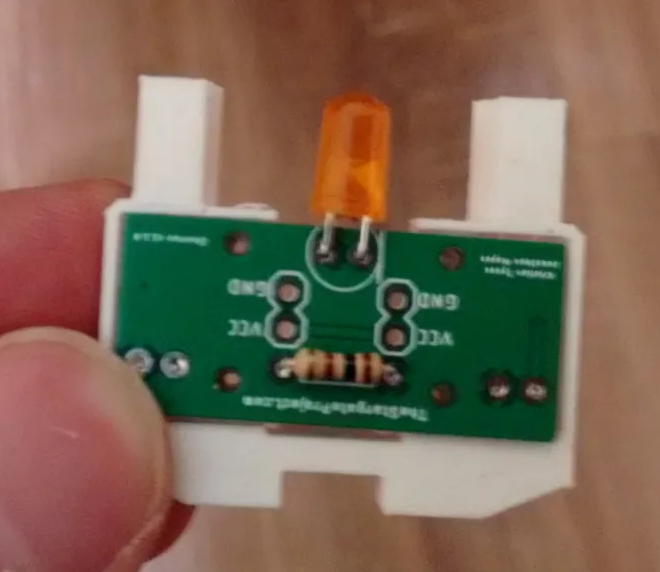

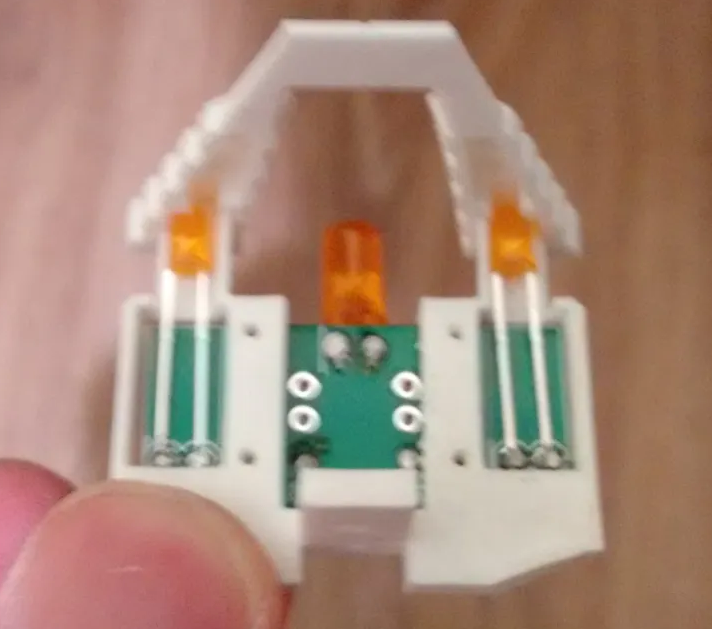

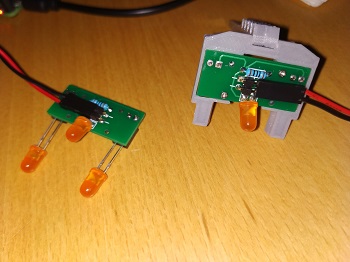

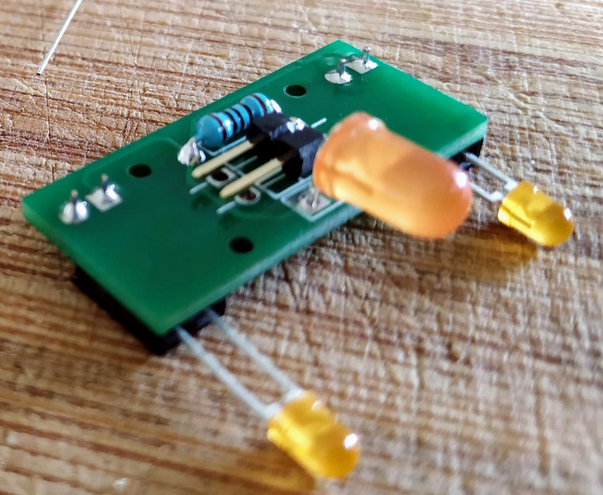

Chevron_v1.1.0 PCB parts
The smol leds can't extend past the holder, the top with the labels is the positive, bottom is negative
Stargate Project Chevron Power Lights Wiring
| ID | Quantity | Part Number | Title | Picture | Reference Diagram | Purchase Site |
|---|---|---|---|---|---|---|
| 1 | 7 | Chevron_v1.1.0 PCB | Chevron_v1.1.0 PCB |
|
xxx | jlcpcb.com $0.00 ($0.00) |
| 2 | 14 | TLHO4400 | LED 3mm - Orange 605nm LED Indication - Discrete 2.4V Radial |
|
xxx |
amazon.com CHANZON 100 pcs 3mm Orange LED Diode Lights (Clear Round Transparent DC 2V 20mA) Bright Lighting Bulb Lamps Electronics Components Indicator Light Emitting Diodes $6 for 100 digikey.com/ /TLHO4400/ $0.38 ($5.32) |
| 3 | 7 | ? | LED 5mm - xxx |
|
xxx |
amazon.com CHANZON 100 pcs 5mm Orange LED Diode Lights (Clear Round Transparent DC 2V 20mA) Bright Lighting Bulb Lamps Electronics Components Indicator Light Emitting Diodes $7.00 for 100 ebay.com/itm/305581114060 50 @ $1.95 (Ship $5.65) Possible Alternative ebay.com/itm/50pcs-Orange-Round-Top-Emitting-Diode-Diffused-Water-Clear-LED-light-5mm-/223748794105?hash=item341877a6f9 (Orig link, not found) |
| 4 | 14 | A2541HWR-2P | Angled connector Female |
|
Side LEDs connector |
lcsc.com/product-detail/female-headers_cjt-changjiang-connectors-a2541hwr-2p_C5441035.html 10 @ $0.45 lcsc.com/product-detail/Pin-Header-Female-Header_CJT-Changjiang-Connectors-A2541HWR-2P_C225510.html (Not Available) |
| 5 | 7 | A2541WR-2P | Angled connector Male |
|
Power Plugin | lcsc.com/product-detail/Pin-Header-Female-Header_CJT-Changjiang-Connectors-A2541WR-2P_C225488.html 10 @ $0.34 |

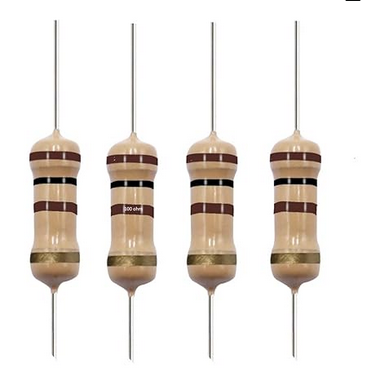

| 6 | 7 | ? | resistor 100 ohm (what wattage?) |
|
xxx | amazon.com/California-JOS-Carbon-Resistor-Tolerance/dp/B0BR66CF2P 40 @ $4.59 |
$13.10 rough total estimate

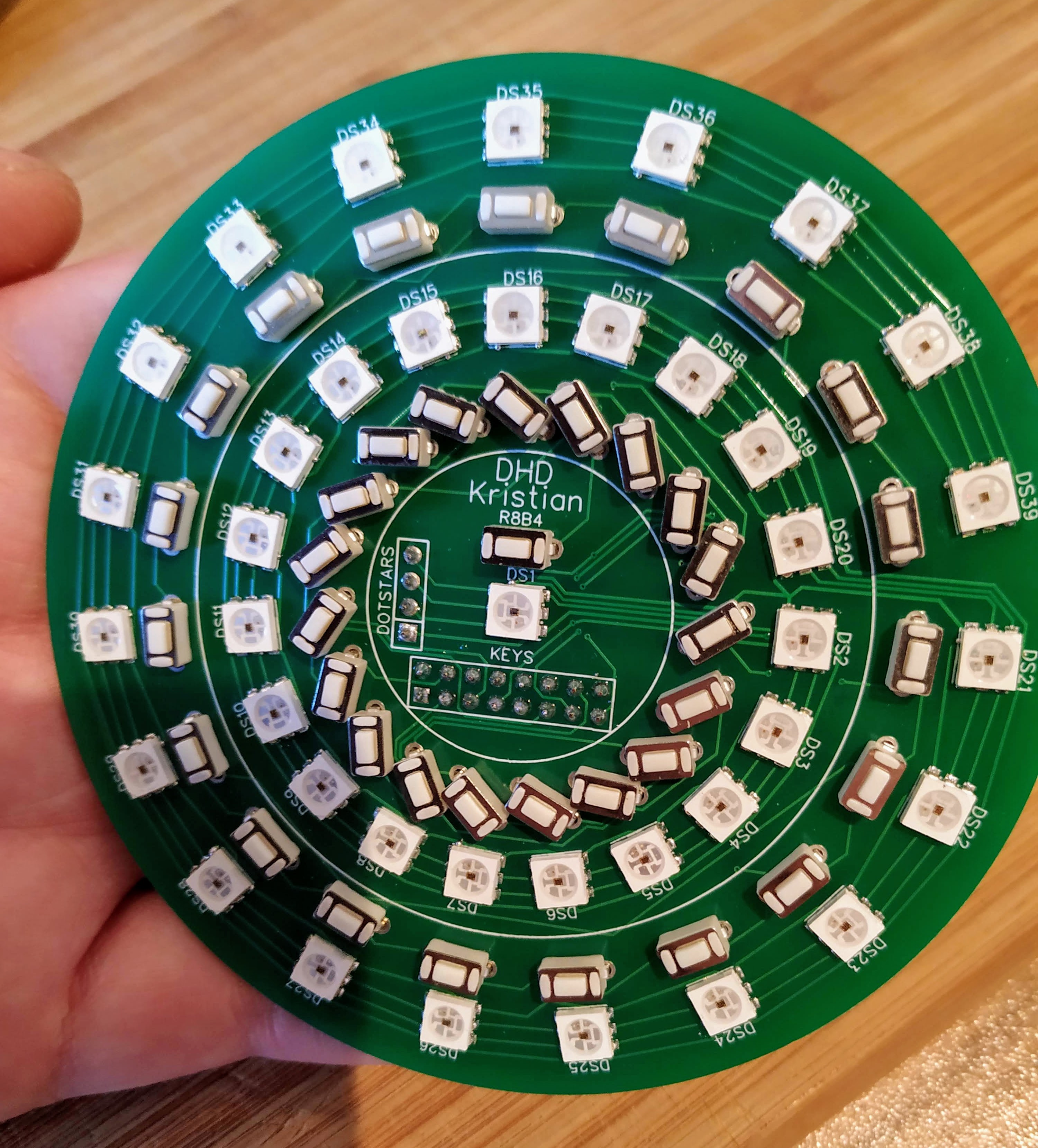

DHD v2
| ID | Quantity | Part Number | Title | Picture | Reference Diagram | Purchase Site |
|---|---|---|---|---|---|---|
| 1 | 1 | Board | DHD Circuit Board |
|
xxx | jlcpcb.com/ $0.92 ($37.00 + fees/template/etc) |
| 2 | 5 | CRCW06034K70FKTA | Resistor - 4.7k |
|
R1, R10, R19, R28, R37 | digikey.com/en/products/detail/vishay-dale/CRCW06034K70FKTA/1222150 $0.15 ($0.75) |
| 3 | 5 | RT0603FRE07560RL | Resistor - 560R |
|
R2, R11, R20, R29, R38 | digikey.com/en/products/detail/yageo/RT0603FRE07560RL/1075422 $0.10 ($0.50) |
| 4 | 5 | RC0603FR-07750RL | Resistor - 750R |
|
R3, R12, R21, R30, R39 | digikey.com/en/products/detail/yageo/RC0603FR-07750RL/727379 $0.10 ($0.50) |

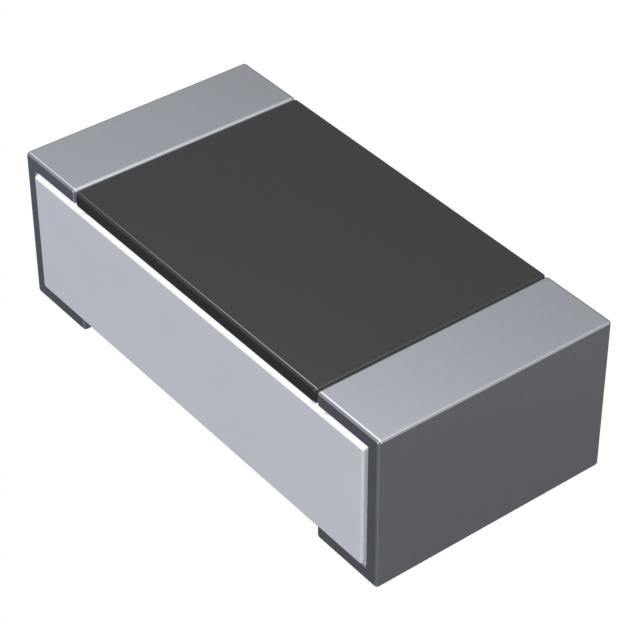

| 5 | 4 | CR0603-FX-1001ELF | Resistor - 1k |
|
R4, R13, R22, R31 | digikey.com/en/products/detail/bourns-inc/CR0603-FX-1001ELF/3593190 $0.10 ($0.40) |

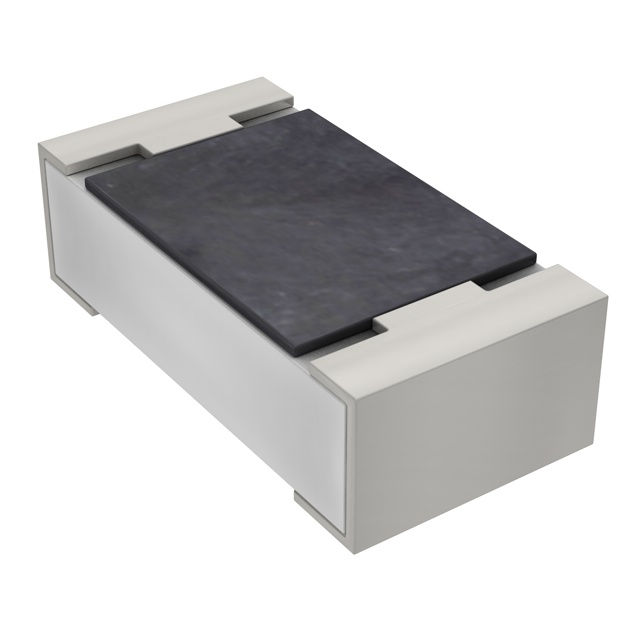

| 6 | 4 | RC0603FR-071K5L | Resistor - 1.5k |
|
R5, R14, R23, R32 | digikey.com/en/products/detail/yageo/RC0603FR-071K5L/726864 $0.10 ($0.40) |
| 7 | 4 | RC0603FR-072K2L | Resistor - 2.2k |
|
R6, R15, R24, R33 | digikey.com/en/products/detail/yageo/RC0603FR-072K2L/727016 $0.10 ($0.40) |
| 8 | 4 | CRCW06033K60FKEA | Resistor - 3.6k |
|
R7, R16, R25, R34 | digikey.com/en/products/detail/vishay-dale/CRCW06033K60FKEA/1174730 $0.10 ($0.40) |
| 9 | 4 | RT0603FRE076K8L | Resistor - 6.8k |
|
R8, R17, R26, R35 | digikey.com/en/products/detail/yageo/RT0603FRE076K8L/1075477 $0.10 ($0.40) |
| 10 | 4 | RC0603FR-0722KL | Resistor - 22k |
|
R9, R18, R27, R36 | digikey.com/en/products/detail/yageo/RC0603FR-0722KL/727056 $0.10 ($0.40) |
| 11 | 2 | RC0603FR-0722RL | Resistor - 22R |
|
R40, R41 | digikey.com/en/products/detail/yageo/RC0603FR-0722RL/727055 $0.10 ($0.20) |
| 12 | 1 | CL10B105KO8NFNC | Capacitor 1uF |
|
C1 | digikey.com CL10B105KO8NFNC $0.10 ($0.10) |

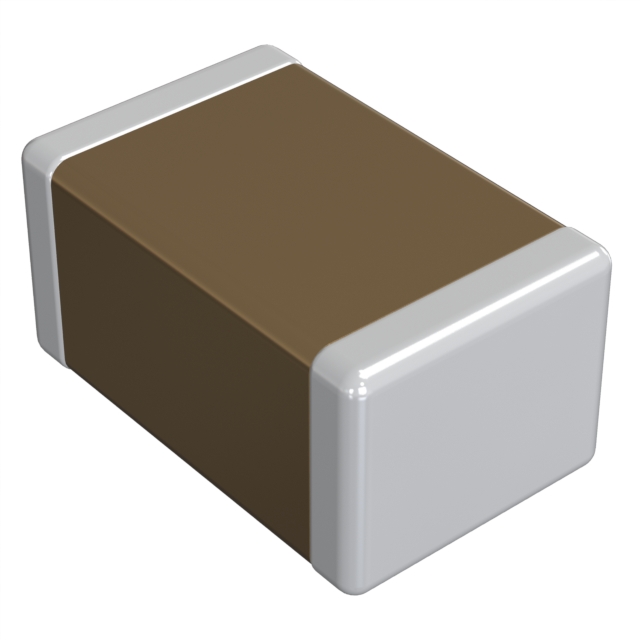

| 13 | 2 | GRM188R61C106MA73D | Capacitor 10uF |
|
C2, C3 | digikey.com/en/products/detail/murata-electronics/GRM188R61C106MA73D/3900480 $0.23 ($0.46) |

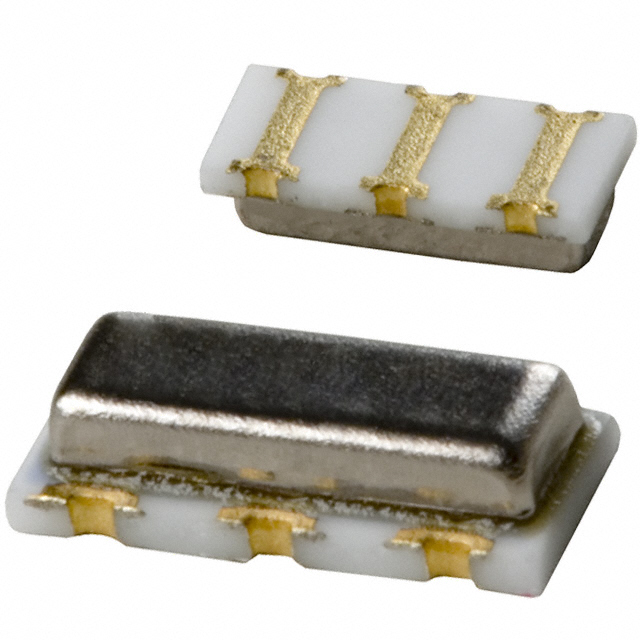

| 14 | 1 | CSTNE16M0VH3C000R0 | Resonator, 16MHz |
|
Y1 | digikey.com/en/products/detail/murata-electronics/CSTNE16M0VH3C000R0/8747732 $0.36 ($0.36) |

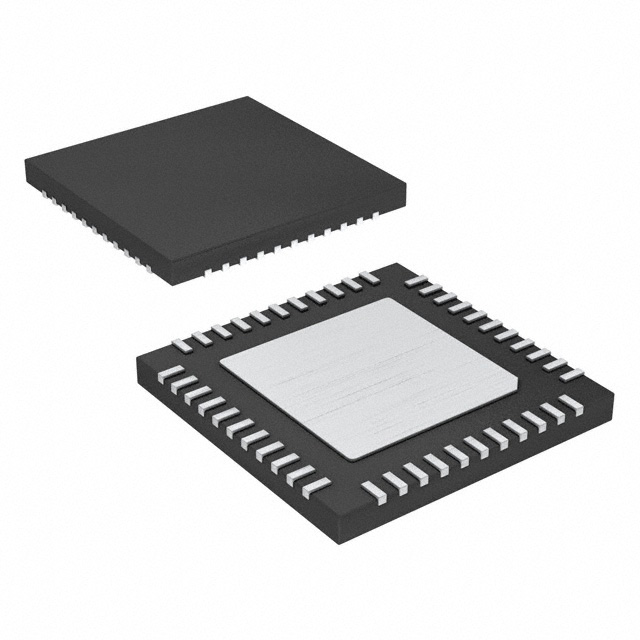

| 15 | 1 | ATMEGA32U4-MU | Microcontroller - ATMEGA32U4-MU |
|
IC1 | digikey.com/en/products/detail/microchip-technology/ATMEGA32U4-MU/1914603 $5.26 ($5.26) |
| 16 | 39 |
APA102-5050 (6-pin) or APA102C-5050 (5x5mm) The SK9822 is almost a direct replacement to the APA102 and is superior in some respects, most importantly its built-in constant-current control Ali Express: 100Pcs Decorative LED Strip Light SK9822 SMD 5050 Chip Built-In LED Individually Addressable DC5V With DATA And CLOCK Seperately |
Addressable RGB LED - APA102-5050 |
|
D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12, D13, D14, D15, D16, D17, D18, D19, D20, D21, D22, D23, D24, D25, D26, D27, D28, D29, D30, D31, D32, D33, D34, D35, D36, D37, D38, D39 |
adafruit.com SK9822 5050 RGB LED w/ Integrated Driver - 10 Pack - SK9822 $4.50 for 10 Possible better alternative: aliexpress 100 pcs @$14.82 sparkfun.com cut tape /apa102c-5050-smd-addressable-rgb-led-cut-tape.html $0.50 ($18.00) |

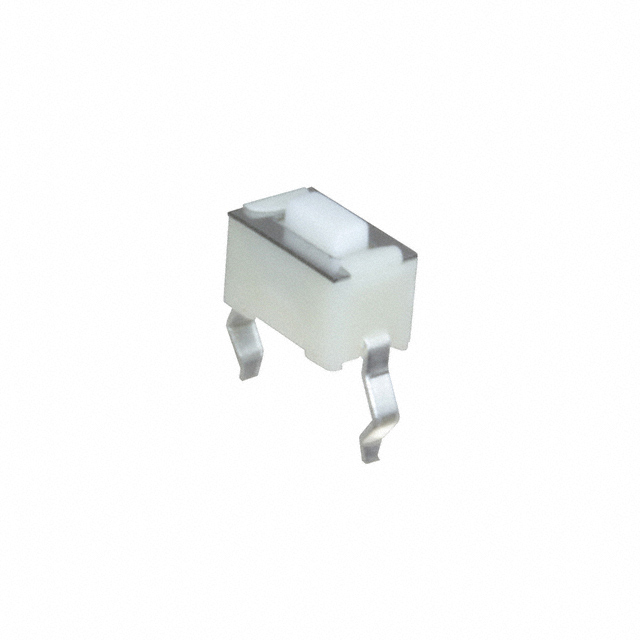

| 17 | 39 | TL1107AF260WQ | Tactile Switch SPST-NO Top Actuated Through Hole - TL1107AF260WQ |
|
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8, SW9, SW10, SW11, SW12, SW13, SW14, SW15, SW16, SW17, SW18, SW19, SW20, SW21, SW22, SW23, SW24, SW25, SW26, SW27, SW28, SW29, SW30, SW31, SW32, SW33, SW34, SW35, SW36, SW37, SW38, SW39 | digikey.com/en/products/detail/e-switch/TL1107AF260WQ/1805469 $0.29 ($11.31) |

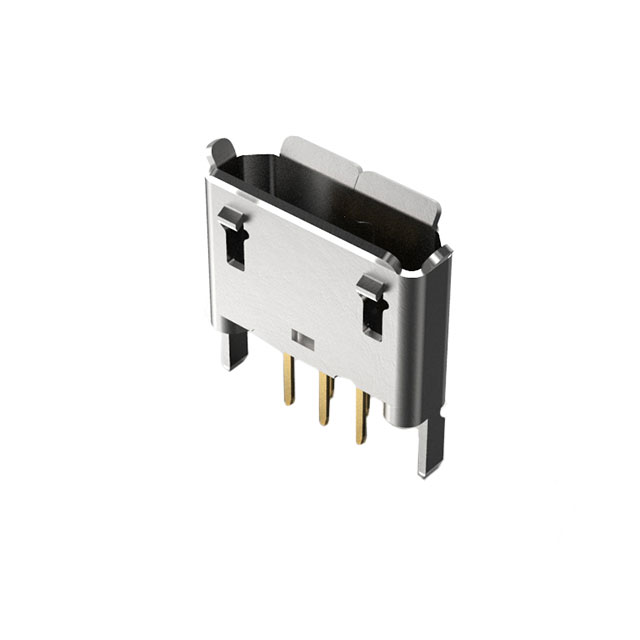

| 18 | 1 | USB3131-30-0230-A | USB - micro B USB 2.0 Receptacle Connector 5 Position Through Hole |
|
USB | digikey.com/en/products/detail/gct/USB3131-30-0230-A/9859642 $0.77 ($0.77) |
$40.61 rough total estimate

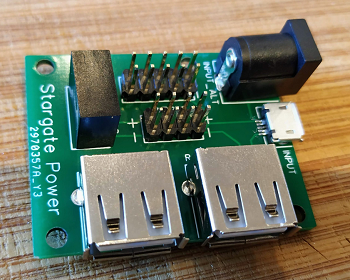

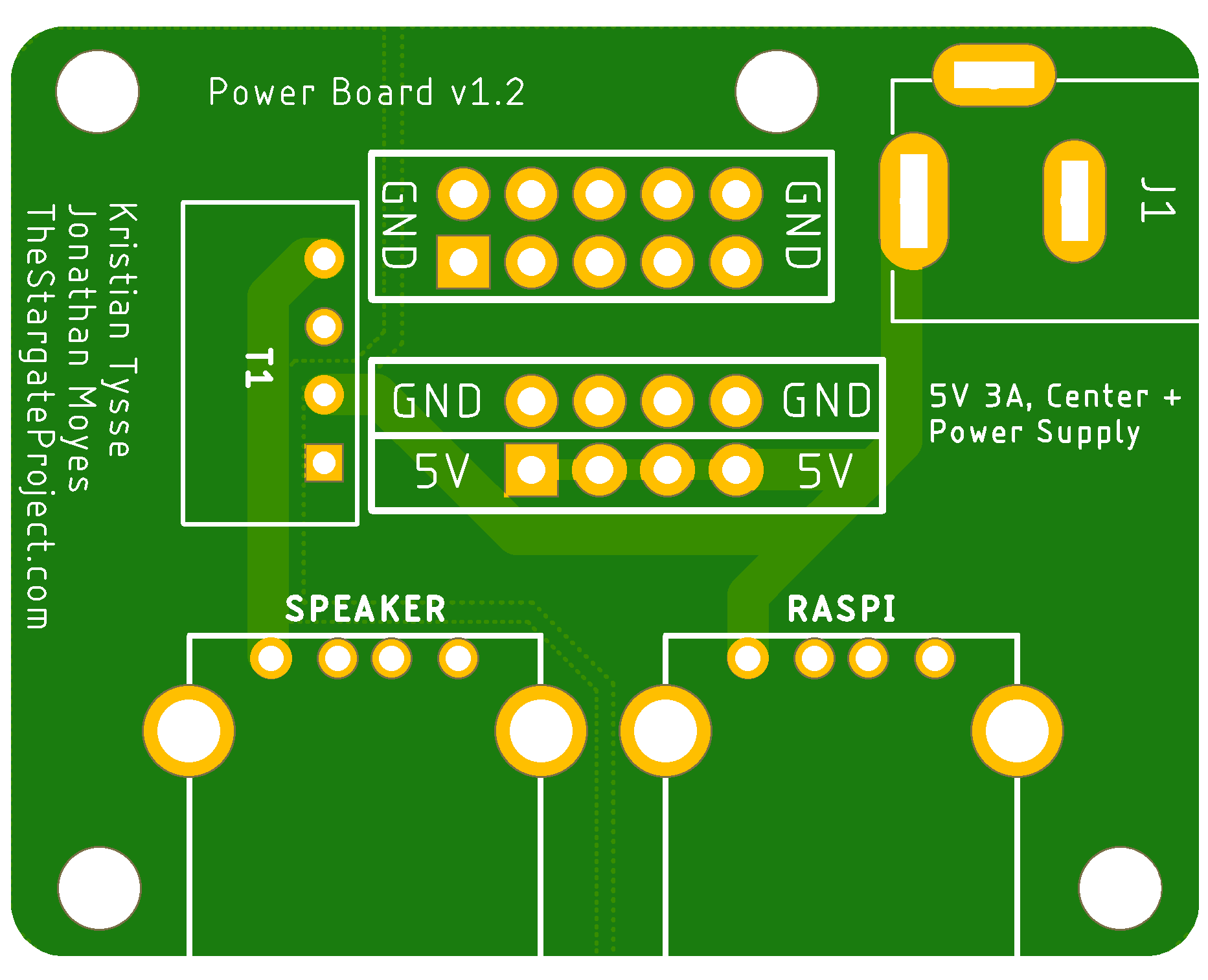

Power PCB parts
$2.49 rough total estimate
Stargate

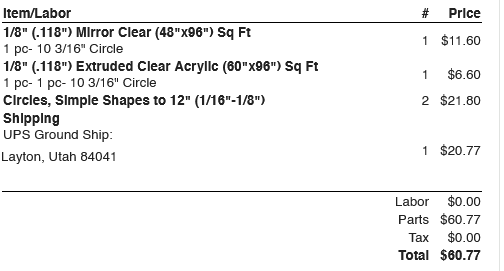

For the infinity mirror, you'll need:
275mm (10.8268") x 3mm (1/8") thick round Plexiglass mirror
275mm (10.8268") x 3mm (1/8") thick round Plexiglass two-way mirror
Research shows the Extruded Clear acrylic is better than cast, moisture resistant, clearer than glass, not turn yellow in sun, 10 year warranty and can be polished back to clarity if scratched.
Build an Infinity Mirror sciencebuddies.org
Amazon Source One LLC 1/8 th Inch Thick 12 x 12 Inches Acrylic Plexiglass Sheet, Clear
Amazon Round Mirrors
https://www.mcmaster.com/mirrored-acrylic/
Youtube Build an Infinity Mirror | Science Project
https://www.twowaymirrors.com/acrylic/
counterbore i think you meant 1.4x4 and 1.4x6 screws. If you search on A/E: "1 box Mix M1 M1.2 M1.4 M1.7 M2 M2.6 M3 M4 " or something similar, you get boxsets with those screws.
https://www.aliexpress.us/item/2255800288826243.html
etsy stores

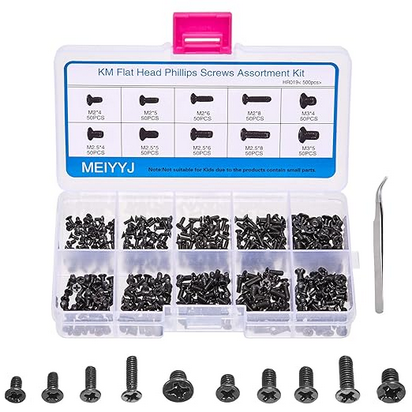

amazon.com 800 pieces 800 Pcs M2 Flat Head Self Tapping Screws, Small Cross Drive Head Self Tapping Woodworking Fastener Screws, Carbon Steel Self Drilling Screws Assortment Kit, 4/5/6/8/10/12/16/20mm
old link: https://www.amazon.com/dp/B0DD46NGD8
| ID | Quantity | Part Number | Title | Picture | Reference Diagram | Purchase Site |
|---|---|---|---|---|---|---|

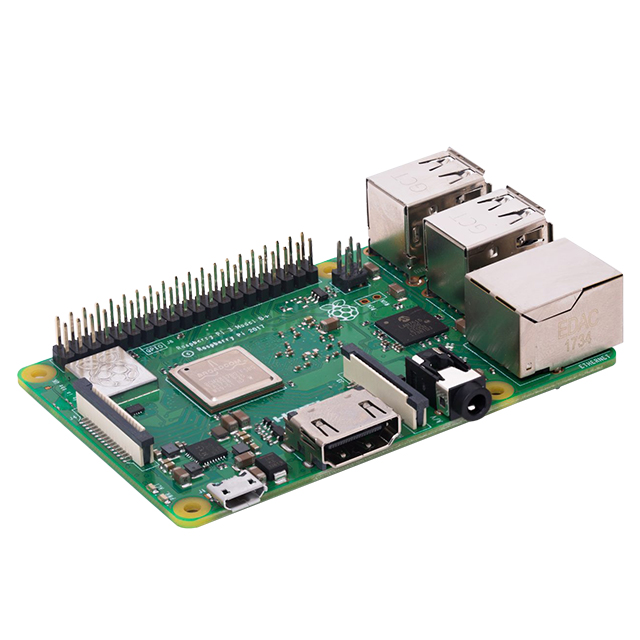

| 1 | 1 | SC0073 (Raspberry Pi 3 Model B+) |
Raspberry Pi (I used the 3B+, but others will work also) Model: SC0073, SBC 1.4GHZ 4 CORE 1GB RAM |
|
xxxRefDiagram |
digikey.com/en/products/detail/raspberry-pi/RASPBERRY-PI-3-MODEL-B/8571724 $37.48 ($0.00) amazon.com $47.71 |

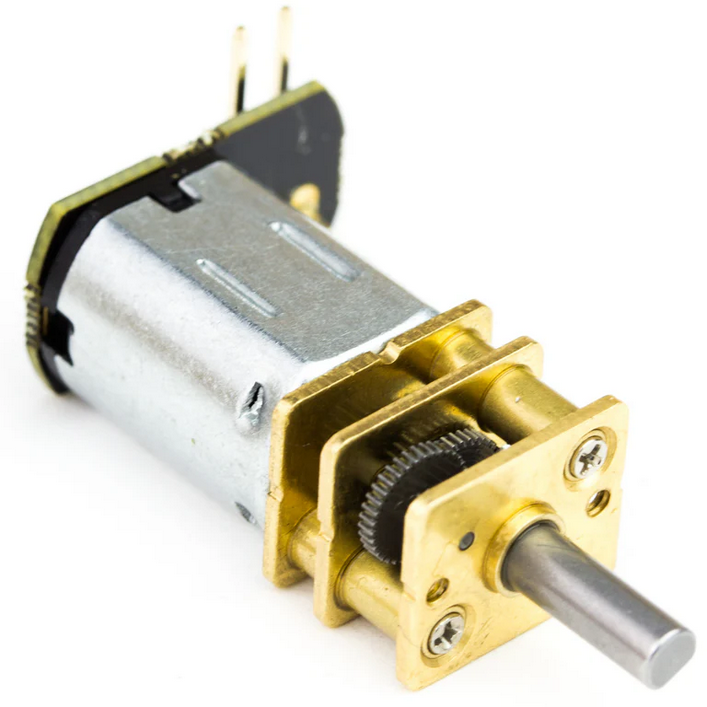

| 2 | 7 | COM0805 | Micro Metal Gearmotor with Push Header Shim - 50:1 (x7) |
|
xxxRefDiagram |
digikey.com/en/products/detail/pimoroni-ltd/COM0805/6873671?gQT=1 $8.62 ($60.34) https://shop.pimoroni.com/products/micro-metal-gearmotor-with-motor-shim?variant=24169921543 $0.00 ($0.00) |

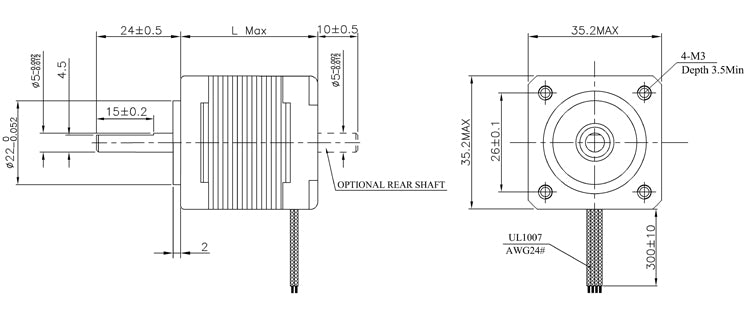

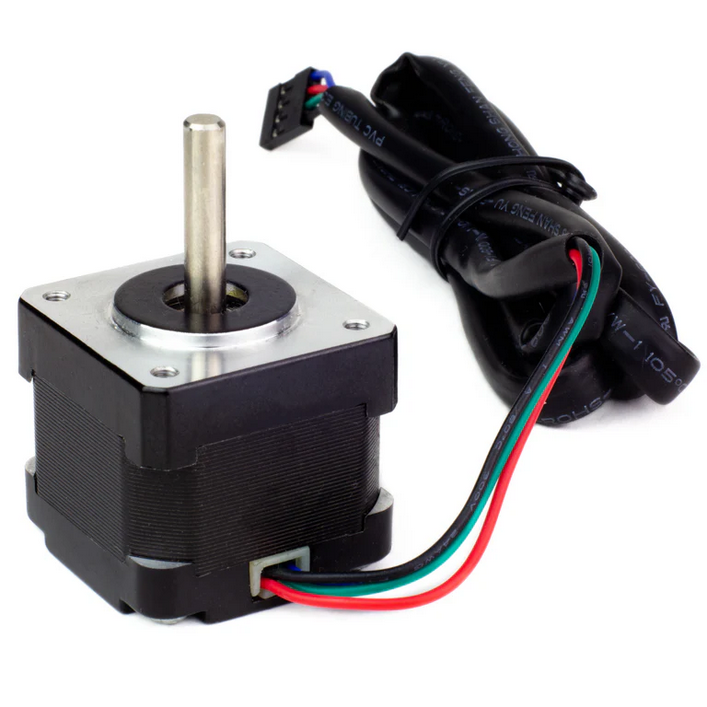

| 3 | 1 | Stepper motor |
Stepper motor Nema 14 (35mm) COM3300 1.8 degree, 2 phase |
|
xxxRefDiagram |
amazon.com $16, prime free shipping ebay.com/itm/262959728311 $10.75 pimoroni.com/products/nema-stepper-motor?variant=31384800985171 $17.00 ($0.00) |

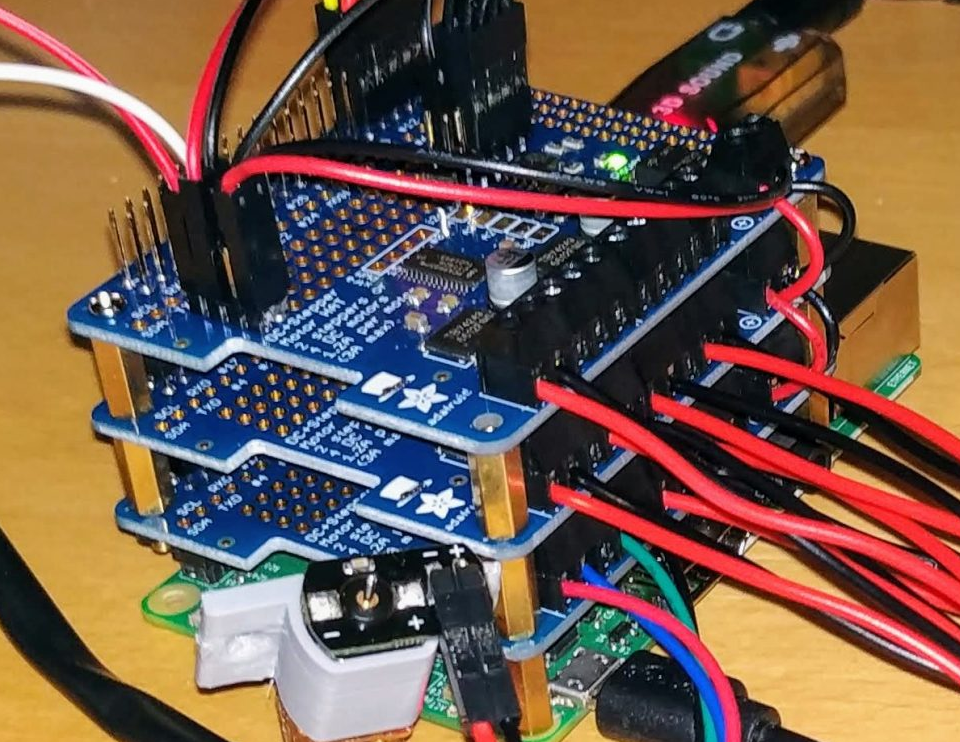

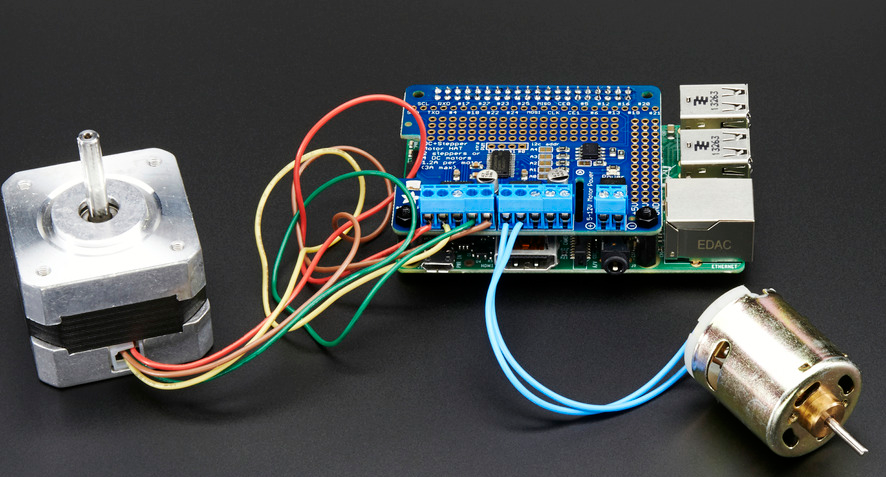

| 4 | 3 | Adafruit DC & Stepper Motor HAT for Raspberry Pi - Mini Kit | Adafruit DC & Stepper Motor HAT for Raspberry Pi - Mini Kit |
|
https://thestargateproject.com/making-the-stargate/ |
adafruit.com/product/2348 3? @ $22.50 ($67.50) (Include standoffs) amazon.com 3? @ $25.95 ($77.85) |

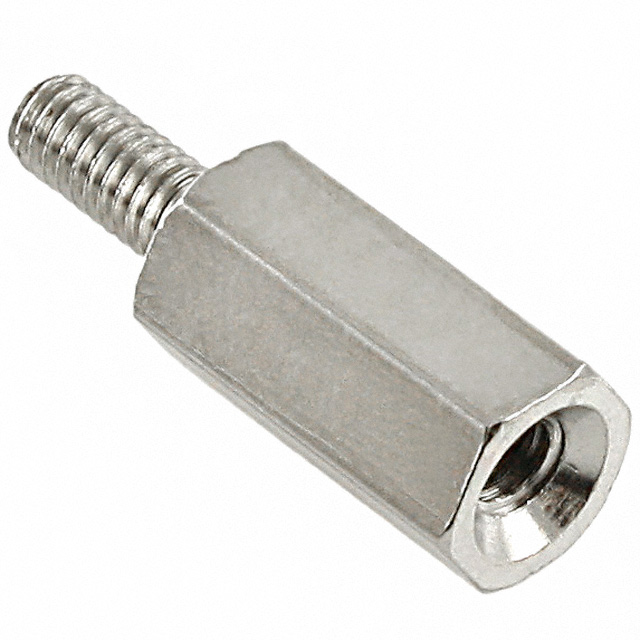

| 5 | 6 (not 10 or 12?) The Adafruit kit has options to include. |
V6622C | HEX Standoff Screws M2.5X0.45 BRASS 10MM |
|
xxxRefDiagram | digikey.com $0.30 ($1.80) |

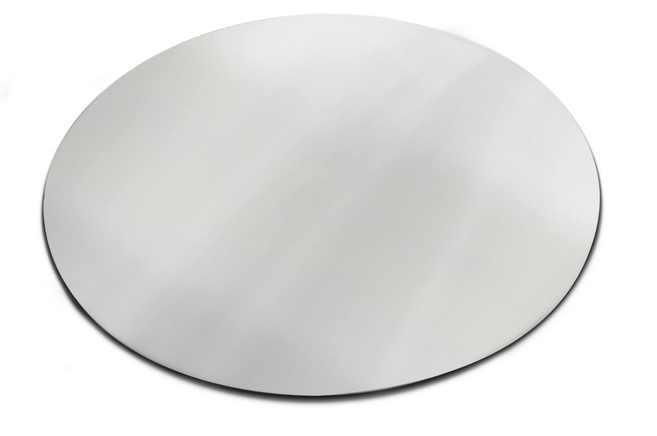

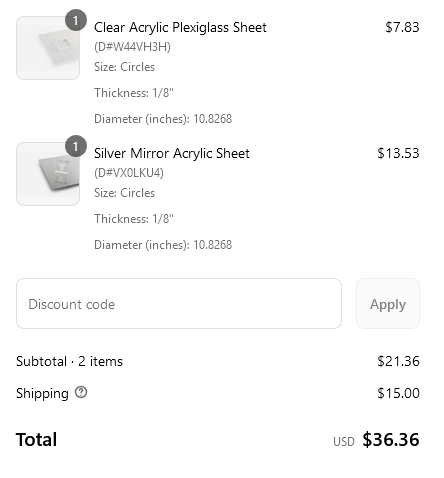

| 6 | 1 | Mirror | 275mm (10.8268") x 3mm (1/8" or 0.125") thick round Plexiglass mirror - Extruded Clear acrylic |
|
|
ttplasticland.com T&T Plastic Land ROUND Silver Mirror Acrylic $13.53 tapplastics.com Tap Plastics ROUND Acrylic Mirror $11.60 (+ $10.90 to cut) |

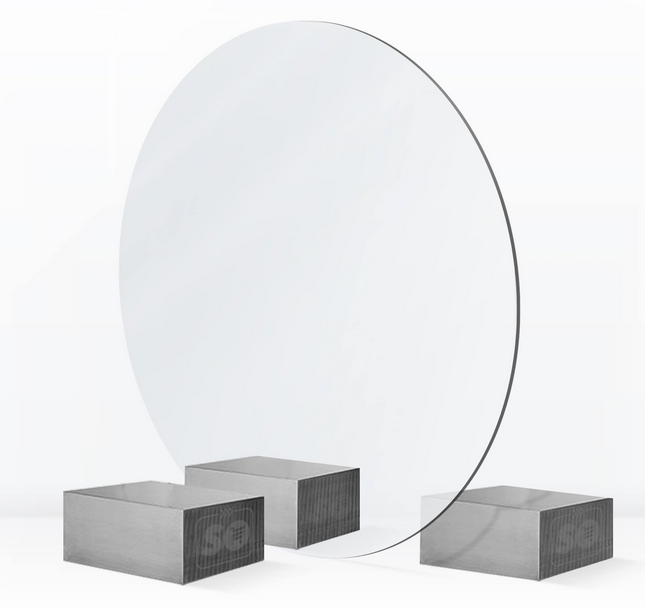

| 7 | 1 | Mirror 2 way | 275mm (10.8268") x 3mm (1/8" or 0.125") thick round Plexiglass two-way mirror - Extruded Clear acrylic |
|
xxxRefDiagram |
ttplasticland.com Clear Acrylic Plexiglass Sheet $7.83 ttplasticland.com T&T See-Thru / Two-Way Mirror Acrylic Sheet $31.34 tapplastics.com TAP Round, Extruded Clear Acrylic (THIS ONE, order film from Amazon) $6.60 (+ $10.90 to cut) Try Some one way mirror film? (need to compare) amazon.com Black/Silver $8.99 amazon.com Silver $7.99 spandex.com Spandex page, waiting on email (Local to me) $0.00 ($0.00) tapplastics.com TAP round, Premium Cast Clear Acrylic $15.00 amazon.com Amazon Custom Cut 1/8" $9.99 amazon.com Amazon Square Sheet 12" x 12" $7.99 tapplastics.comTap Plastics P99 Round Cut, has matt finish $15.58 ($0.00) |

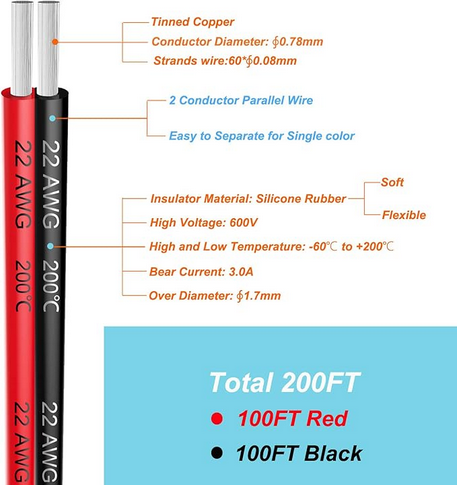

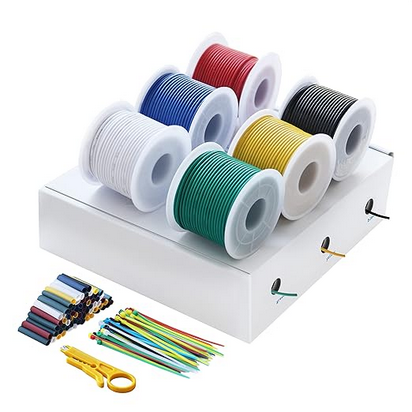

| 8 | xxQuant | Red Wire | 22 AWG |
|
|
amazon.com black/red wire kit 22 AWG $16.99 ($0.00) amazon.com black/red wire kit 22 AWG 100 ft SPOOL $16.98 ($0.00) amazon.com black/red wire kit 20 AWG $17.99 ($0.00) |
| 9 | xxQuant | Black Wire | 22 AWG |
|
|
amazon.com black/red wire kit 22 AWG $16.99 ($0.00) amazon.com black/red wire kit 22 AWG 100 ft SPOOL $16.98 ($0.00) amazon.com black/red wire kit 20 AWG $17.99 ($0.00) |

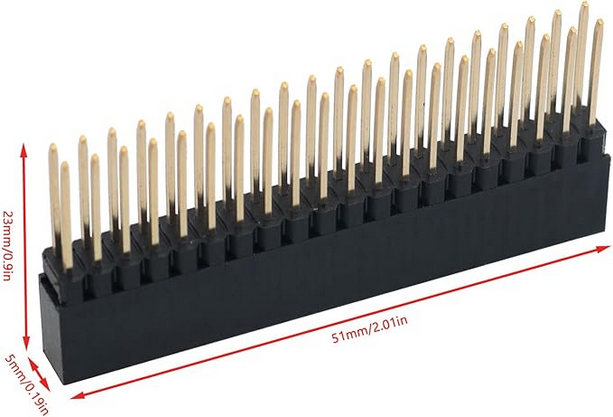

| 10 | 3 | xxPart | 2x20 pin Female GPIO Header for Raspberry Pi pins (11mm) 2.54mm pin spacing |
|
xxxRefDiagram |
amazon.com 12mm pins $7.89 for 4, prime shipping adafruit.com 10mm pins $2.50 amazon.com 11mm pins $9.99 for 6 amazon.com Geekworm 2x20 40 Pin Stacking Female Header Kit for Raspberry Pi - 5 Specifications, 10Pcs $7.90 ($0.00) amazon.com GeeekPi 2x20 40 Pin Stacking Female Header Kit $11.19 ($0.00) sparkfun.com Sparkfun Tall GPIO Female Headers - 2x20 Pin (are these too tall?) $2.50 ($0.00) shop.pimoroni Orig Link $2.10 ($0.00) |

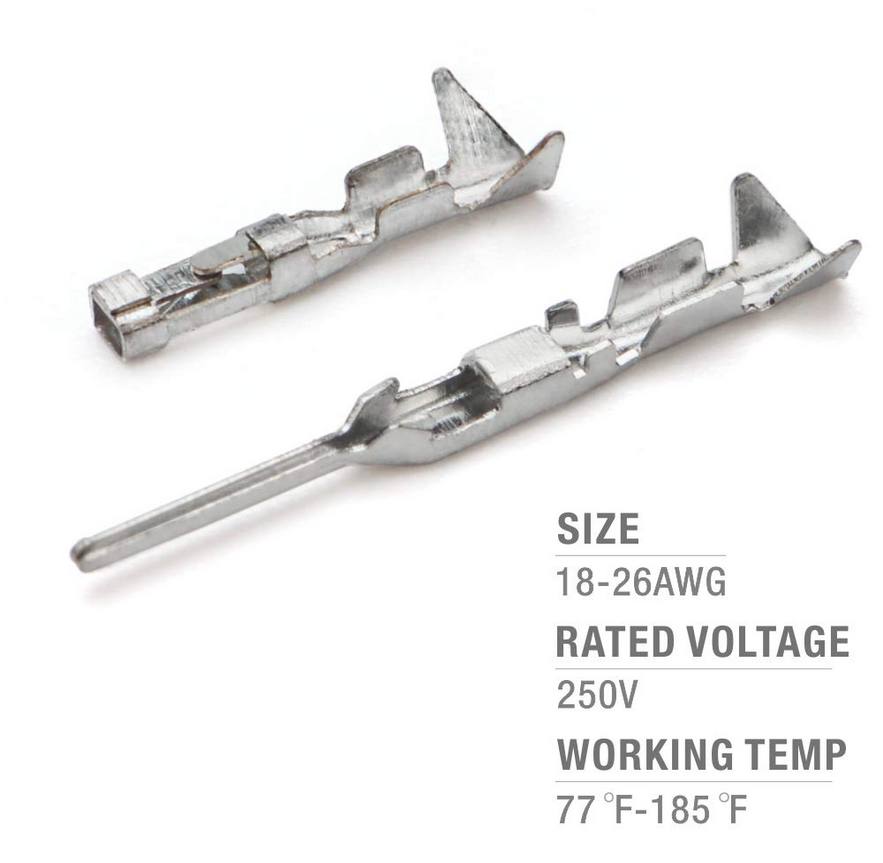

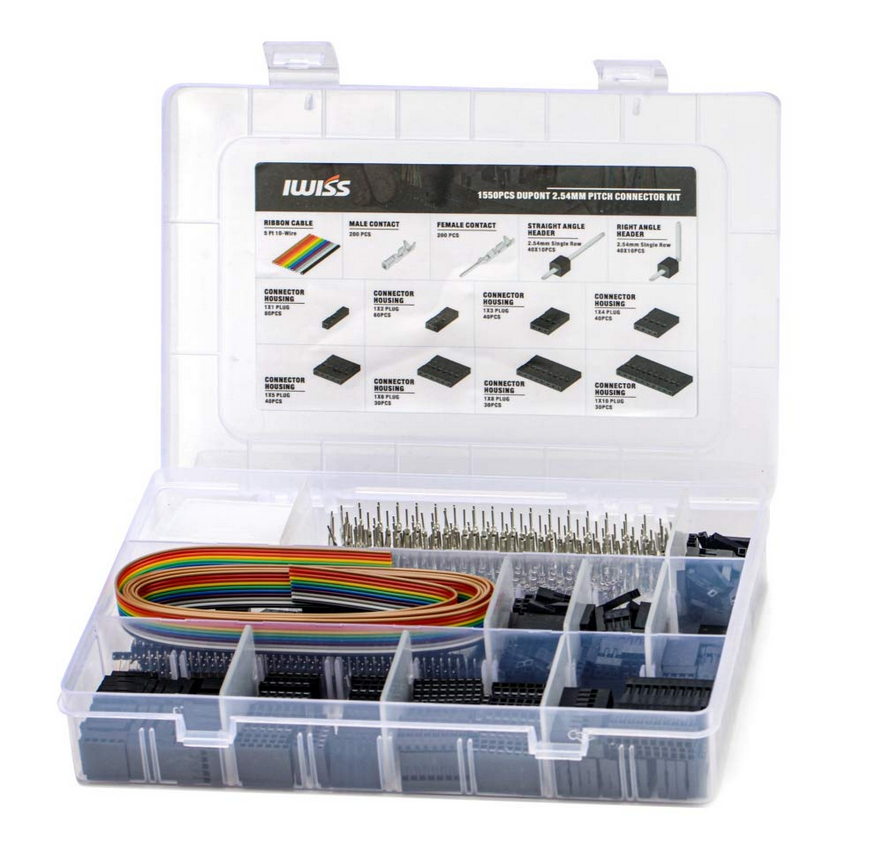

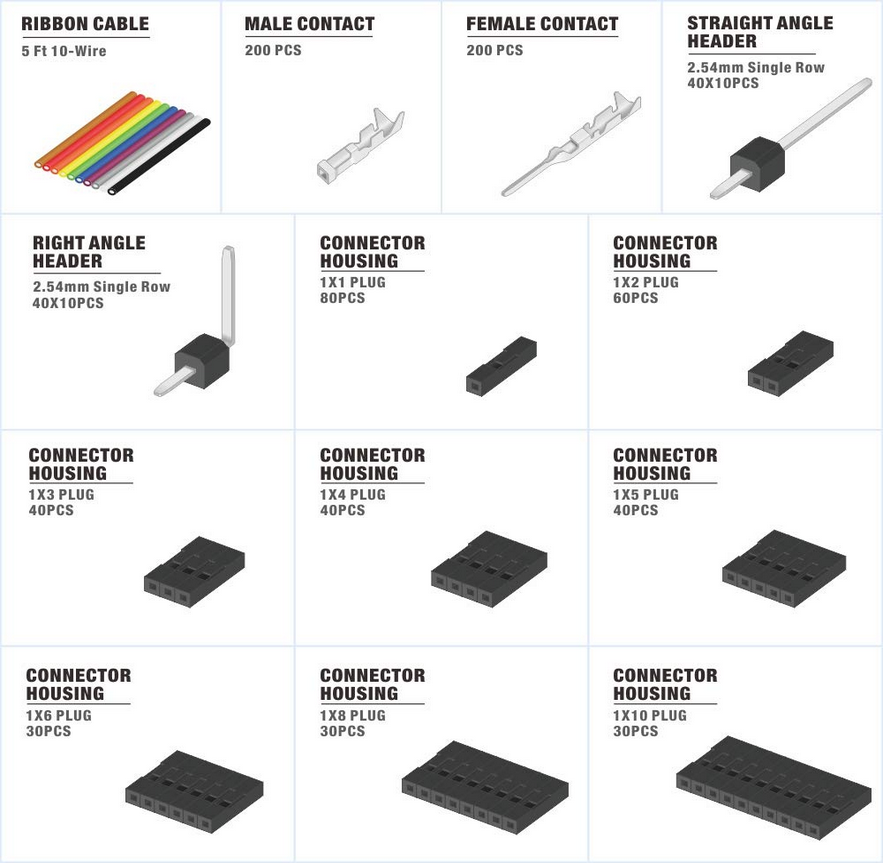

| 11-12-13 | 1 | Box | IWISS 1550PCS 2.54mm Pitch Dupont Connector Kit, Includes Pin Headers, Jumper Wire, Crimp Pins for RC Servo, Arduino, SMT, SATA, EPS, PCIe, Battery Balancer |
|
amazon.com 200 male/female terminal, 60 1x2 housing $14.99 Taiss 600PCS Dupont Connector Kit - 2.54mm 1/2/3/4/5/6/7 Pin Housing Connector and Male/Female Crimp Pin, Jumper Wire Cable $9.99 ($0.00) |
|
| 11 | Use Kit Above | M20-1180046 | Female wire terminator/connector (crimp) (quite a lot of these) |
|
xxxRefDiagram | digikey.com $0.12 ($0.00) |

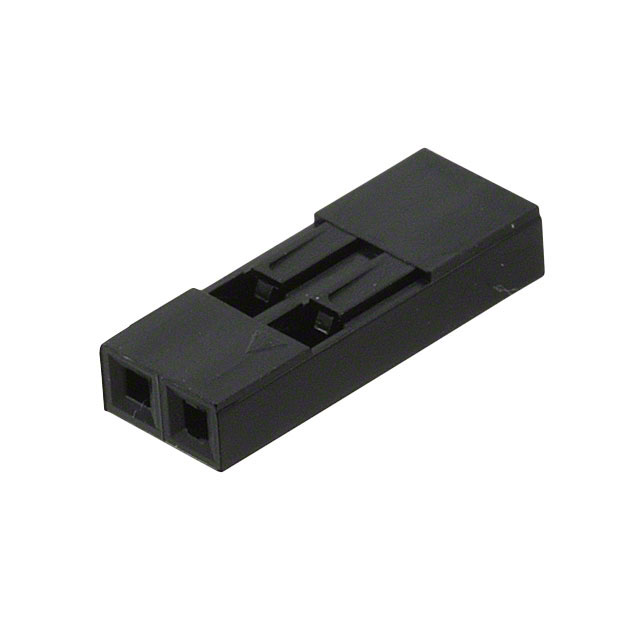

| 12 | Use Kit Above | M20-1060200 | Female socket connector housing (quite a lot of these as well) |
|
xxxRefDiagram | digikey.com $0.13 ($0.00) |

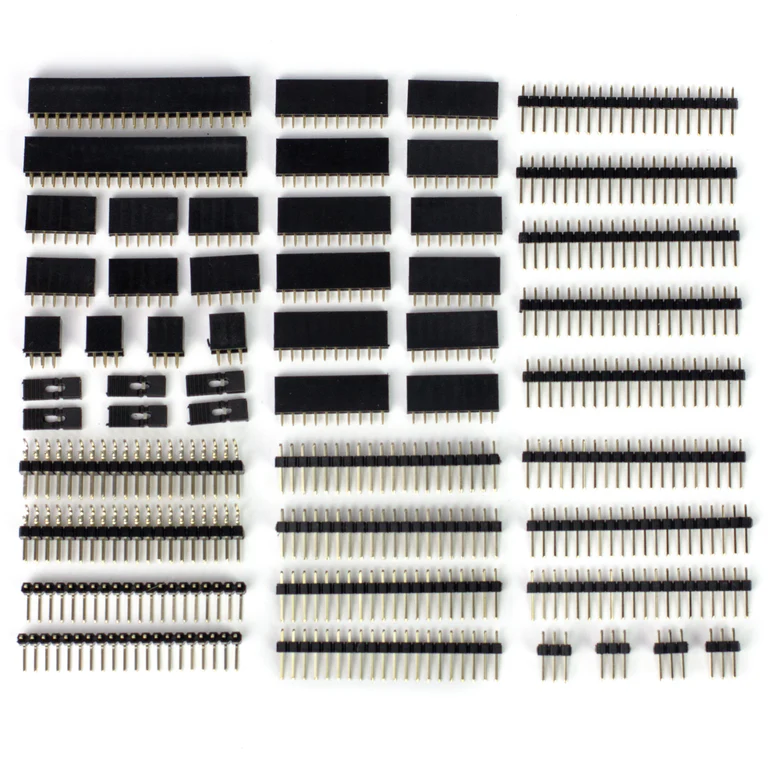

| 13 | 1x14 (2) or 2x14 (1) Use Kit Above |

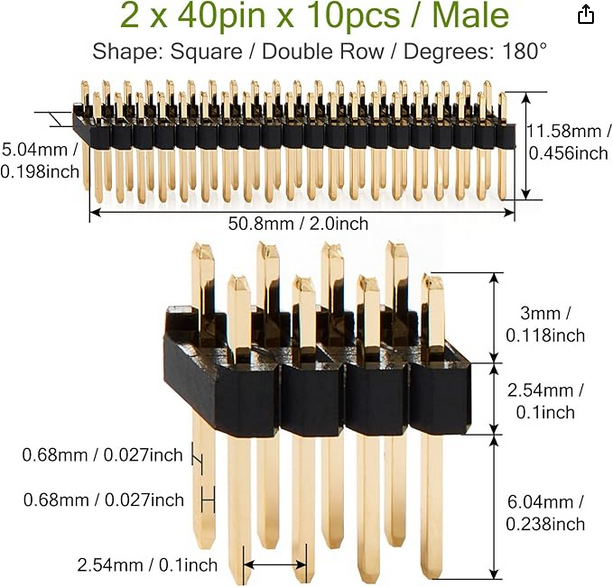

Chanzon Pin Header Strip for Arduino Gpio 2x20 pin x 10pcs Male Headers Pins Straight Double Row Gold Plated Pitch 2.54mm 0.1 inch Breakaway for PCB Connector Raspberry pi Machine Breadboard Maker Essentials - Mixed 0.1"/2.54mm Headers (50pcs!) |
Top of hat connector |
|
xxxRefDiagram |
amazon.com $8.00 (10 pcs) pimoronitop.shop $6.00 ($0.00) pimoroni.com $6.90 ($0.00) |

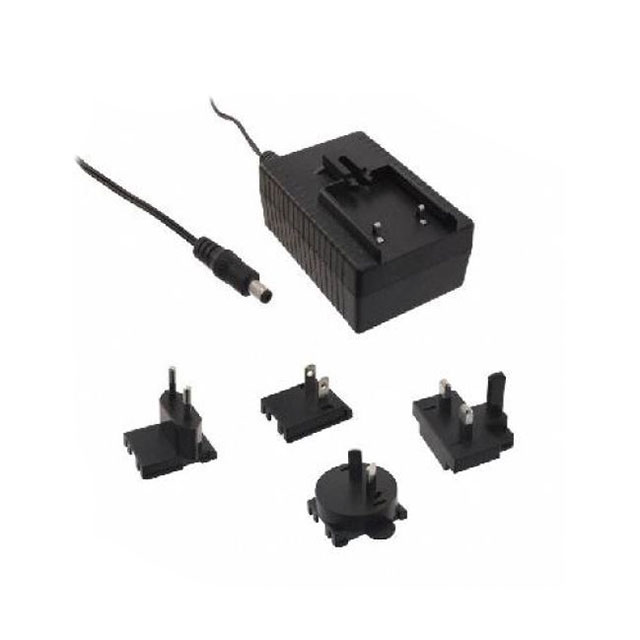

| 14 | 1 | KTPS18-05030MP-VI-P1 | AC/DC WALL MOUNT ADAPTER 5V 18W |
|
xxxRefDiagram | digikey.com $17.36 ($0.00) |

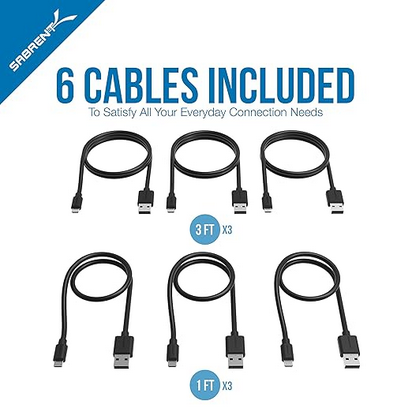

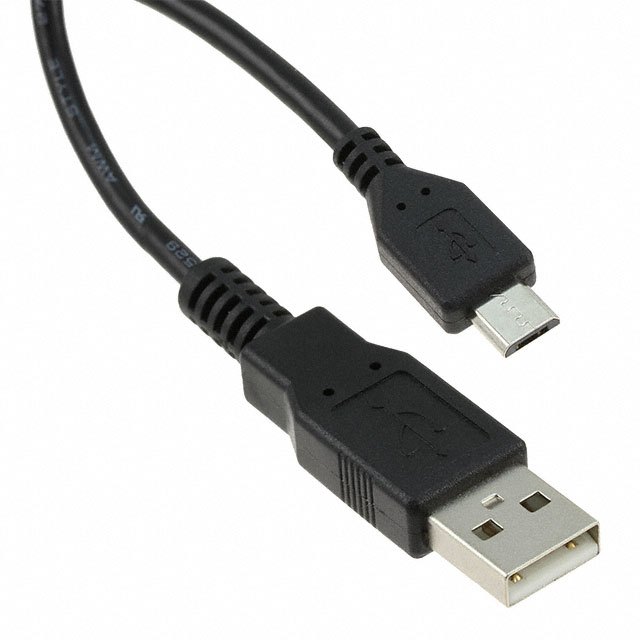

| 15 | 2 | AK67421-0.3-VM | Short USB cable A male to Micro B Male (2x) |
|
Hows this connect and what to? |
amazon.com 6 pack, 3 of 1ft, 3 of 3ft $8.98 prime digikey.com 1' (300mm) $5.66 ($11.32) amazon.com Single $5.99 |
| 16 | 1 | JBLGO2BK | Speaker with USB and jack connections |
|
xxxRefDiagram | Amazon $39.95 ($0.00) |

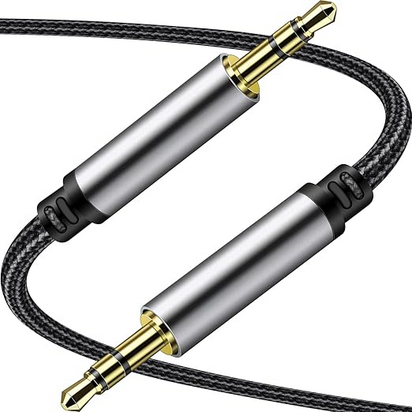

| 17 | 1 | 3.5mm Audio Aux Cable | 3.5mm Short audio cable (HOW LONG IS SHORT?) |
|
xxxRefDiagram | amazon.com 1.5' (2 pack) $4.74 ($0.00) |
| 18 | 1 | xxPart |

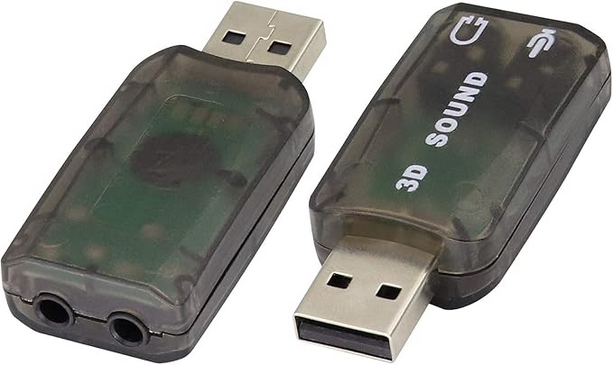

USB audio adapter https://www.ebay.com/itm/EXTERNAL-VIRTUAL-USB-3D-5-1-CHANNELS-STEREO-SOUND-CARD-AUDIO-ADAPTOR-CONVERTER/313158190949?epid=0&hash=item48e9aec765:g:G-kAAOSwSmJfGaeE |
|
xxxRefDiagram |
amazon.com 2 pack $6.99 ($0.00) amazon.com 3 pack $7.97 ($0.00) |

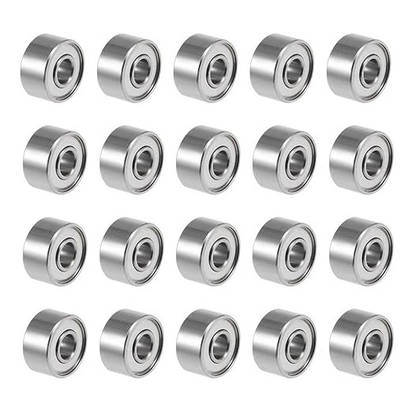

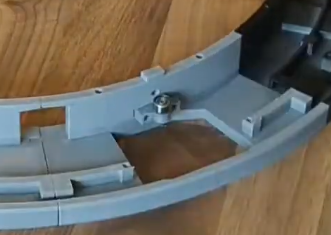

| 19 | 7 | 693ZZ | 693ZZ Deep Groove Ball Bearings Z2 3mm X 8mm X 4mm Ball bearings |
|
xxxRefDiagram |
Amazon uxcell (20 pcs) $9.59 Amazon Saipe (30 pcs) $7.99 |

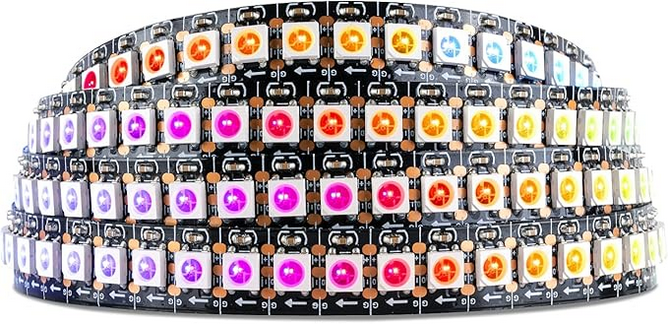

| 20 | 1 (3.3 feet, 144 LEDs) | WS2812B NeoPixel, WS2812, SK6812 |
Adafruit Flexible RGB LED Strip (aka NeoPixel, WS2812, SK6812) 144 pixel per meter, 12-14mm wide WS2815 Is A Newer Version Of WS2812B. WS2815 has a higher refresh rate, which means it can deliver better color accuracy and brightness. 5v or 12v? WS2815 is 12v |
|
xxxRefDiagram |
amazon.com 5v Amazon WS2812 $9.99 pimoroni.com Pimoroni UK 14mm wide $26.40 euro ($0.00) amazon.com 12 vAmazon 12mm wide, WS2815 (Upgraded WS2812B) 3.2ft 144(2x72) Pixels Individually Digital Addressable RGB $16.79 |

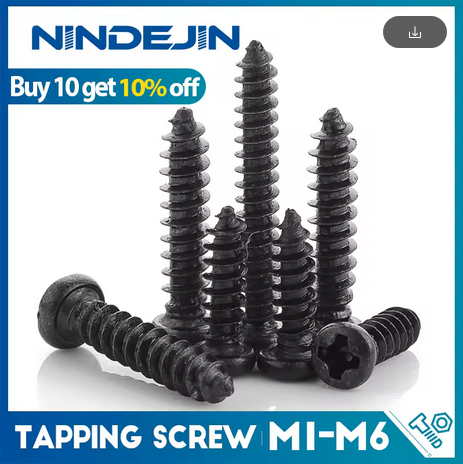

| 21 | How Many??? | M1.2 | Tapping Screws 1.2x5mm Maybe Chevron LED board to holder? |
|
xxxRefDiagram |
aliexpress $1.78 (100pcs) Amazon MAYBE $5.99 Amazon kit $5.99 |
| 22 | 18 (if not printing combined version) | xxPart |

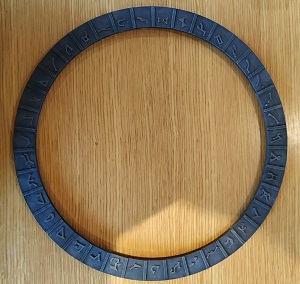

Screw 1.4x4mm (ca 25 pcs) Glyph Ring |
|
|
aliexpress $1.87 (100 pcs) Amazon kit (same as above) $5.99 |
| 23 |

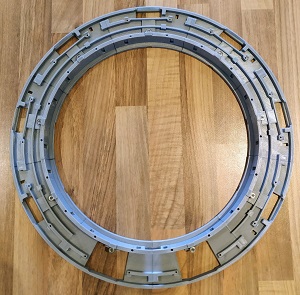

(18) for Ring (18) for ball bearing holder (18) for Core to Outer Ring |
xxPart |

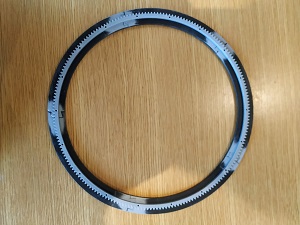

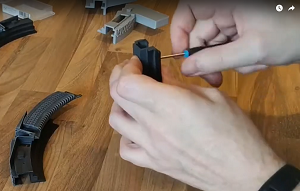

Screw 1.4x6mm Core to Outer ring Larger gear to Glyph Ring and ball bearings if separate |
|
|
aliexpress $1.87 (100 pcs) Amazon kit (same as above) $5.99 |

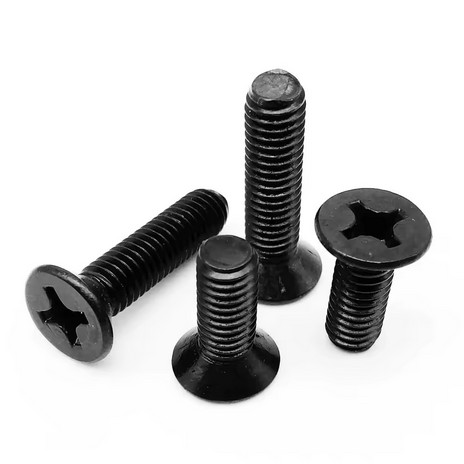

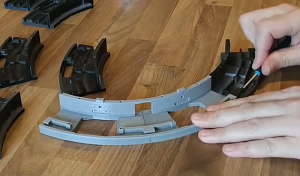

| 24 | (3) on combined, (8) on separate | xxPart | Screw 2.5x12mm (ca 50 pcs) Picture of packs show: 2.6x12mm Back Ring |
|
|
aliExpress $1.98 (100 pcs) ($0.00) |
| 25 | xxQuant | xxPart | Screw 2.5x16mm (ca 18 pcs) Picture of packs show: 2.6x16mm |
|
Not pointy like original | aliExpress $2.20 (100 pcs) ($0.00) |

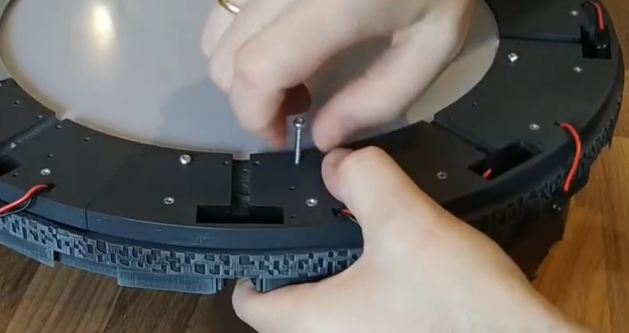

| 26 | xxQuant | xxPart | Screw 3x30mm (18 pcs) The 30mm screws are only used to secure the inner ring, all they way from the back of the gate and through to the inner ring. |
|
|
Ali Express $3.31 (50 pcs) ($0.00) |

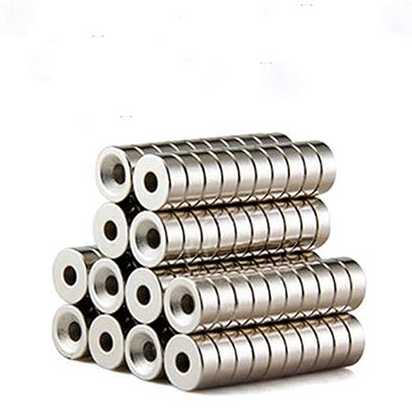

| 27 | 4 | Countersink disc 10x3mm | Supermagnets neodymium 10mm wide x 3mm height For base platform pieces? |
|
xxxRefDiagram |
amazon.com 25 Pieces 10x3mm, 3mm Hole, Countersink disc Small $7.49 Amazon Neo (35 pcs) $6.99 Supermagneter 10-pk $0.00 ($0.00) |
| 28 | xxQuant | xxPart | OTHER MISC |
|
xxxRefDiagram |

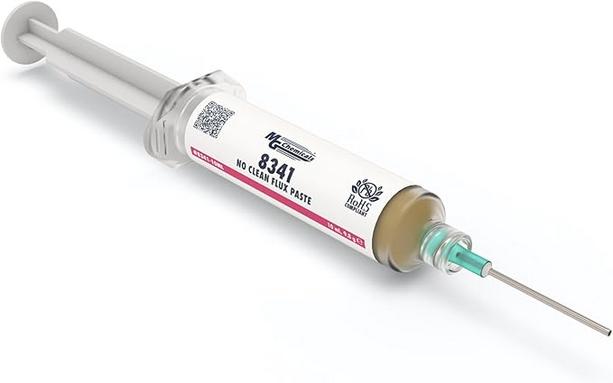

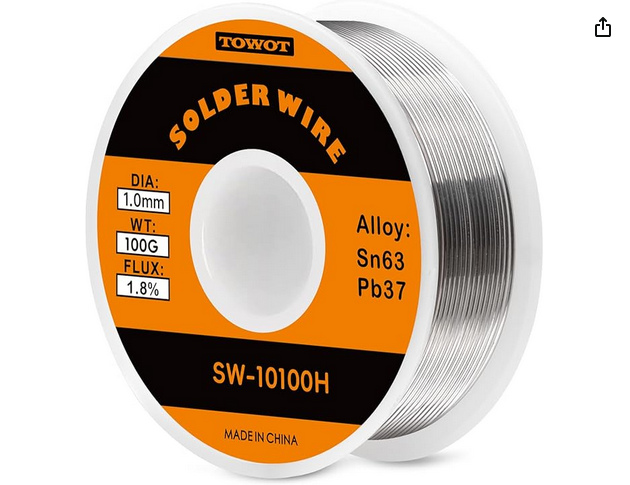

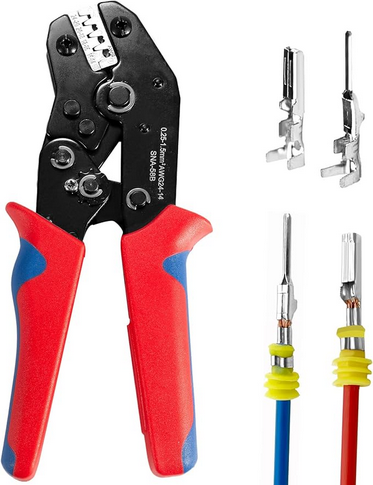

Wire Crimping Tool with Ratchet $14.98 Screws M2 M2.5 M3 $6.99 Flux Paste $18.00 Treela 4 Set 8341 No Clean Solder Flux Paste 10cc $9.99 Essmetuin 4 Set Flux Paste 10cc $14.95 Solder, Tin, Rosin, 1mm, 63/37 $7.64 Kester 44 Solder Wire, 63/37 (0.8mm) $13.23 AUSTOR 60-40 Tin Lead Rosin Core Solder Wire for Electrical Soldering (100g, 1.0mm) $8.99 MG Chemicals 63/37 $28.27 |
$400 rough total estimate
Order Prices 2025-08-01

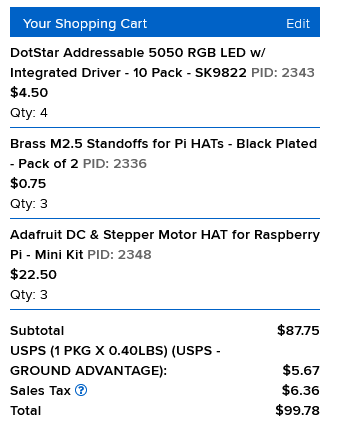

Adafruit: $99.78

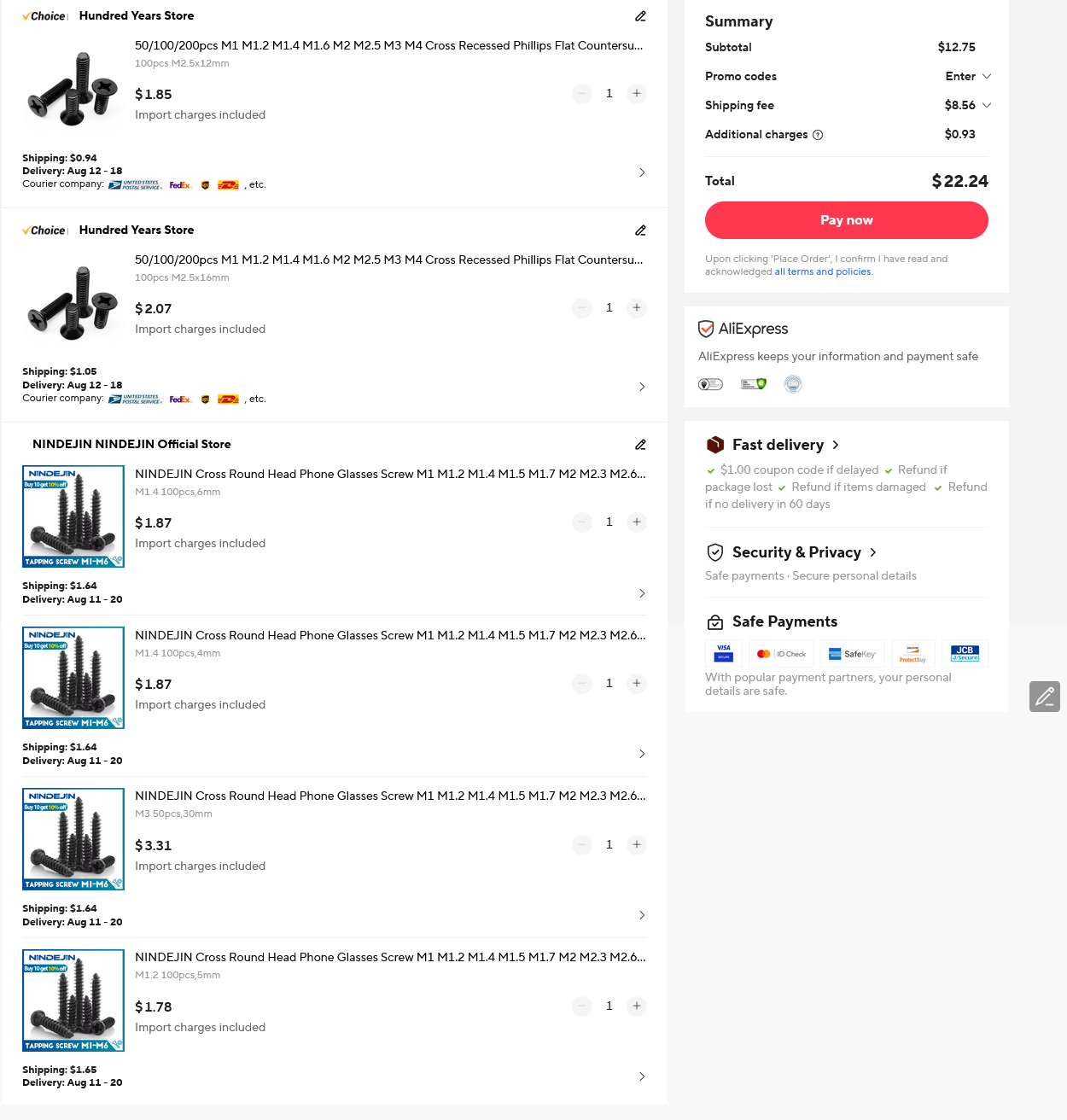

AliExpress: $22.24

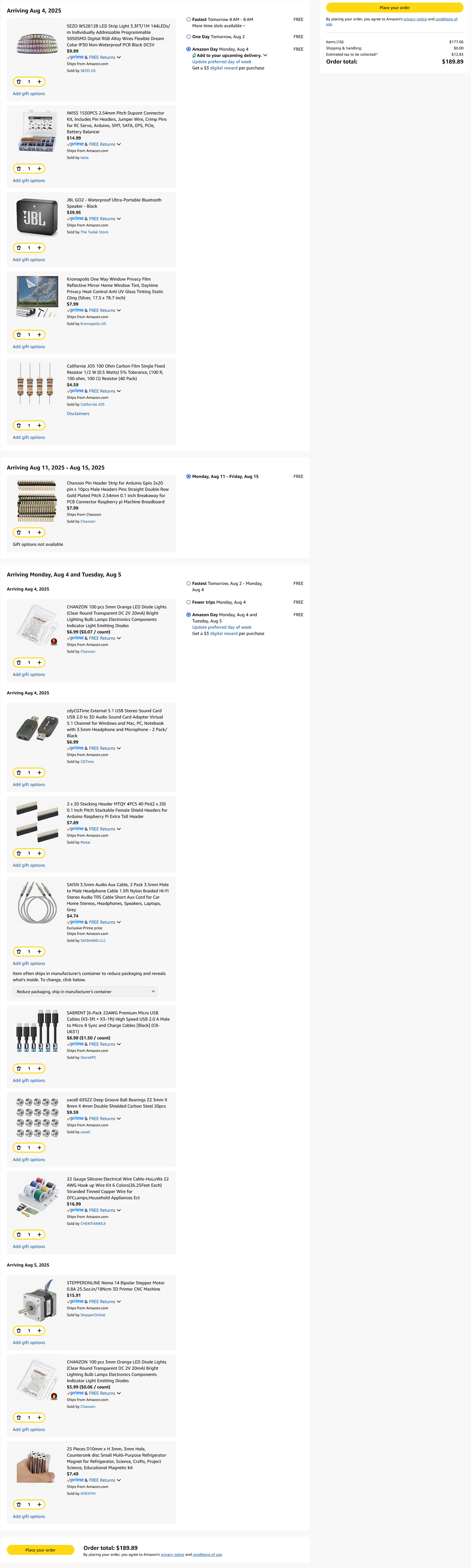

Amazon: $189.89

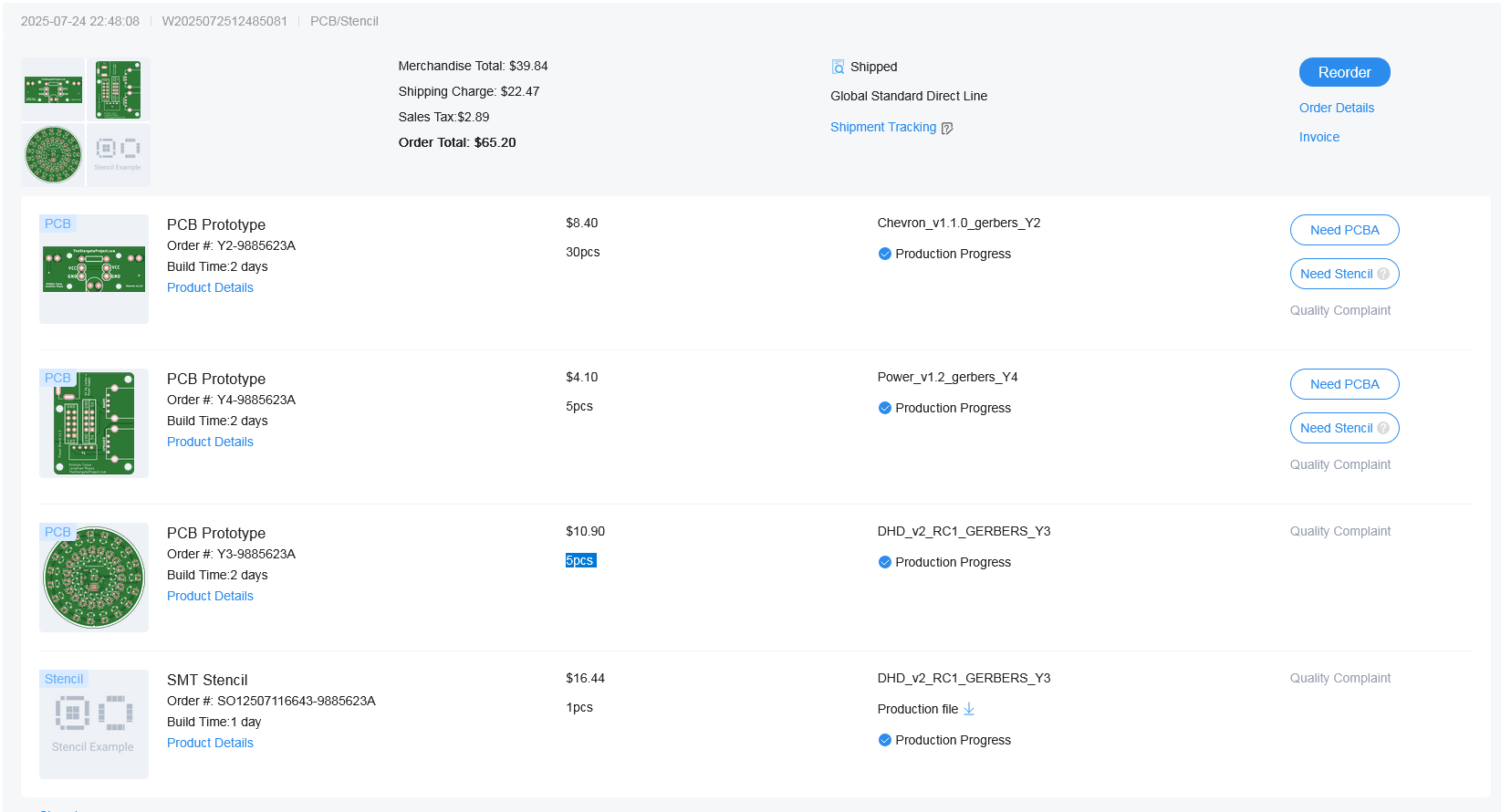

JLCPCB: $65.20

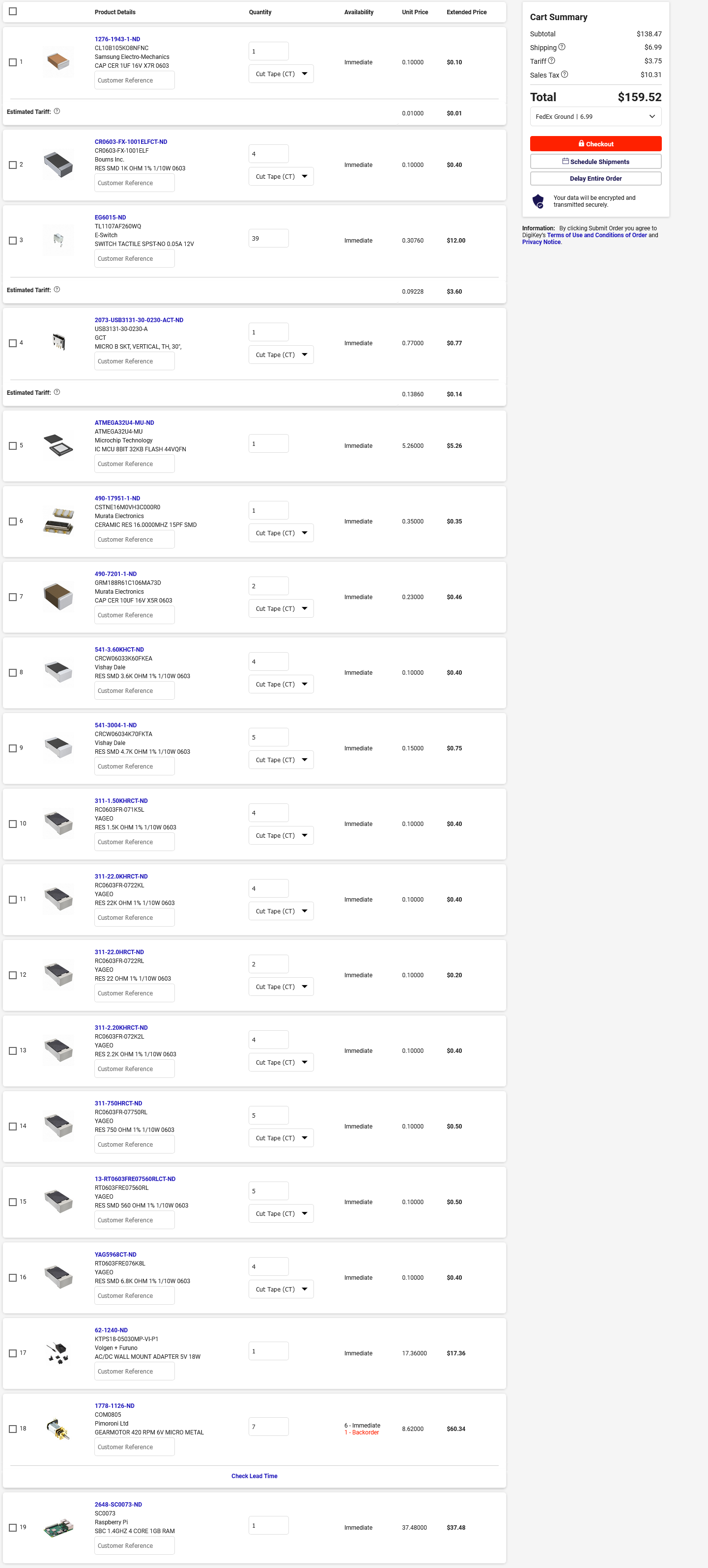

DigiKey: $159.52

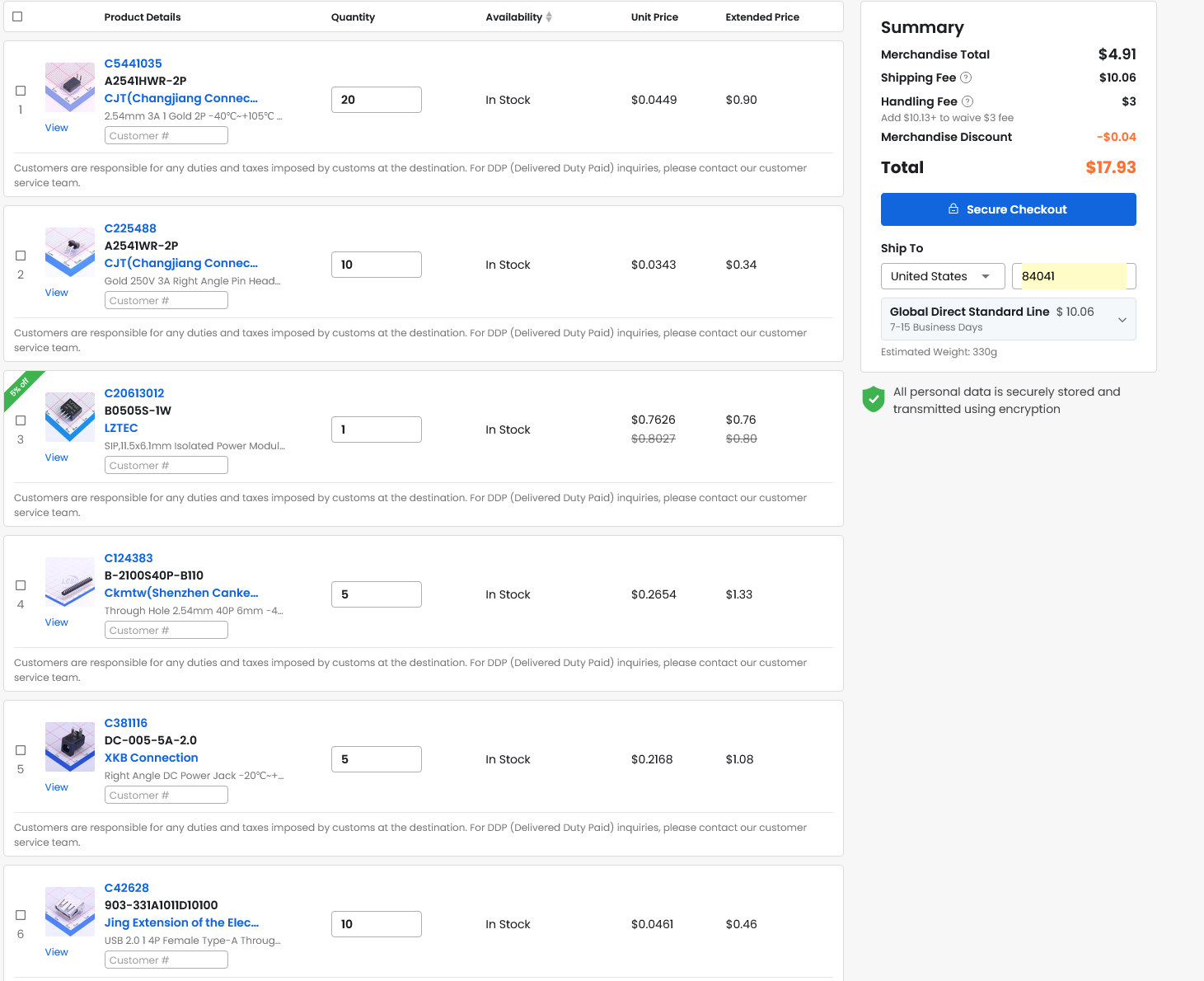

LCSC Electronics: $17.93

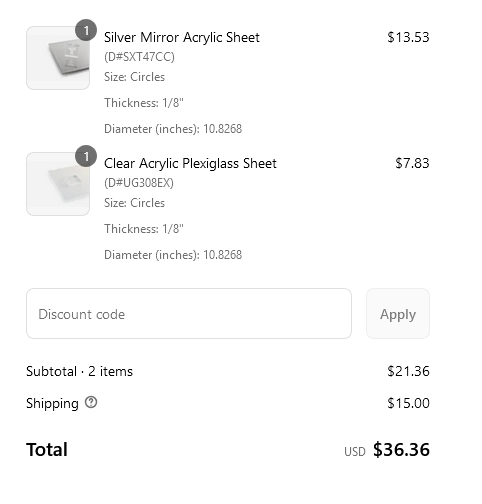

TTPlastics: $36.36
-----------------------
Total: $590.92
